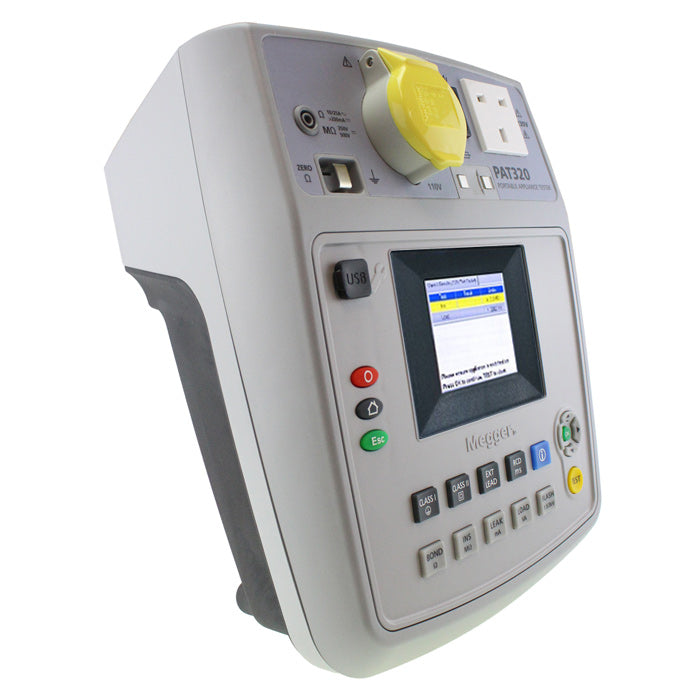

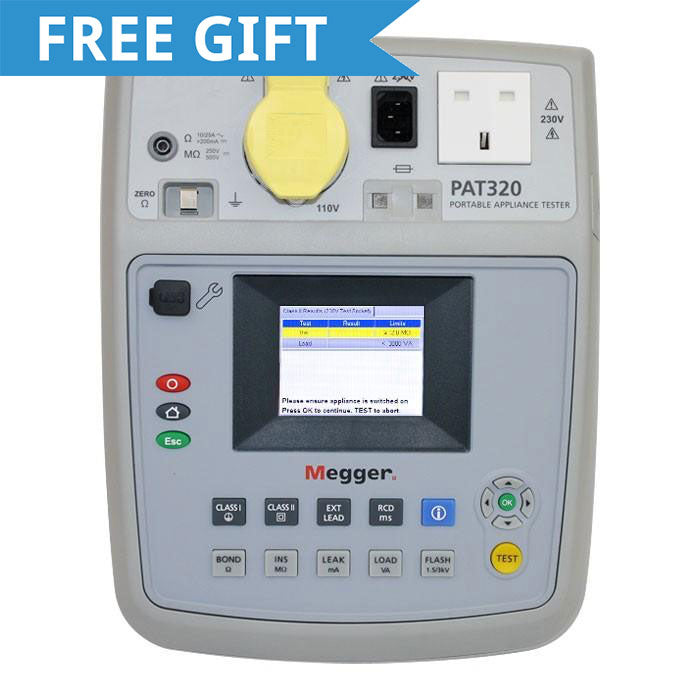

Megger PAT320 PAT Tester
- Capable of testing both 230V and 110V appliances.
- Large choice of tests includes RCD check function
- Results and test functions clearly displayed on bright colour screen
The Megger PAT320 is a full featured portable appliance tester that combines convenient manual or automatic PAT testing with simple use and a rugged construction. Complete with dual voltage operation, the PAT320 is a hugely versatile tester suitable for electricians offering PAT testing as a service.
Simple push button operation enables the Megger PAT320 top provide quick and intuitive electrical safety testing of Class I, Class II, IEC/Extension Leads and portable RCDs, with direct access buttons to regularly used functions allowing a more productive PAT testing process. In addition these buttons allow the PAT320 to perform single tests rather than a full sequence.
When in automatic mode the Megger 320 PAT Tester will test Class I and II appliances giving a Pass/Fail indication with test reading upon completion of the test. Manual mode allows users to select and enter specific test parameters to suit their own individual needs and makes routine testing a particularly fast process.
The Megger PAT320 PAT Tester is a fantastic choice for regular portable appliance testing by electrical contractors, PAT testing specialists and maintenance departments in a range of commercial and industrial environments including hotels, colleges, offices and factories.
Key Features
- 230V and 110V operation
- Tests portable RCDs and is safe for use on sensitive IT equipment
- Full colour screen with clear display of test functions and results
- Straightforward operation in manual or automatic mode
- Enables quick and productive appliance testing
- Internal back-up battery retains operating status when unit is unplugged for up to five minutes
| PAT320 | PAT350 | PAT410 | PAT420 | PAT450 | |
|---|---|---|---|---|---|
| Earth Bond Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| IT Safe (200mA test current) | ✔ | ✔ | ✔ | ✔ | ✔ |
| Insulation Test (250V, 500V) | ✔ | ✔ | ✔ | ✔ | ✔ |
| Substitute Leakage Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Differential Leakage Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Touch Current Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Portable RCD Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Extension Lead Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Fuse Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Operational Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Flash Test | ✔ | ✔ | |||
| 230V and 110V Operation | ✔ | ✔ | ✔ | ✔ | |
| Internal Memory (10,000 results) | ✔ | ✔ | ✔ | ||
| Downloadable (USB) | ✔ | ✔ | ✔ | ||
| QWERTY Keyboard | ✔ | ✔ | ✔ |
- Earth Bond: 200mA, 10A & 25A (10 mΩ (0 to 1.99 Ω )
- Insulation: 250V or 500V selectable (10 mΩ (0 to 1.99 Ω)
- Substitute Leakage: 40V (0.01mA resolution)
- Differential Leakage: Nominal mains (0.01mA resolution)
- Touch Current: Nominal mains (0.01mA resolution)
- Operational test: Nominal mains (0 to 3700VA)
- IEC Lead test: 12V (Polarity)
- Portable RCD Test: Nominal mains (0.1ms resolution)
- Fuse test 3.3V (Audiable beep)
- Megger PAT320 meets the requirements of IEC 61010-1: 2001
- Test leads meet the requirements of IEC 61010-031: 2002
- Creepage and clearances for 300 volts to Earth Category II
The Megger PAT320 comes with:
- Earth Bond Test Lead
- Extension Lead Adaptor
- Calibration Certificate
- Instruction Manual & CD
- Carry Case
- 12 Month Warranty
The Megger PAT320 PAT Tester is available in a range of kits:
- Megger PAT320 Kit A
- Megger PAT320 Kit B
- Megger PAT320 Kit C
- Megger PAT320 Kit D
- Megger PAT320 Business in a Box
| Kit A | Kit B | Kit C | Kit D | Business in a Box | |
|---|---|---|---|---|---|
| Megger PAT320 PAT Tester | ✔ | ✔ | ✔ | ✔ | ✔ |
| Microwave Leakage Detector | ✔ | ✔ | |||
| PAT Certificate Pad | ✔ | ✔ | |||
| SimplyPATs Version 7 Software | ✔ | ✔ | |||
| PAT Register Book | ✔ | ✔ | ✔ | ✔ | |
| IEC Adaptor Kit | ✔ | ✔ | ✔ | ✔ | |
| 110V Extension Lead Adaptor | ✔ | ✔ | ✔ | ✔ | |
| Megger MST210 Socket Tester | ✔ | ✔ | ✔ | ✔ | |
| 250 Tuff Tag Pass Labels | ✔ | ✔ | ✔ | ✔ | ✔ |
| 1000 Pass Labels | ✔ | ✔ | ✔ | ✔ | ✔ |
| 200 Fail Labels | ✔ | ✔ | ✔ | ✔ | |
| 250 PassWrap Cable Labels | ✔ | ✔ | ✔ | ✔ | ✔ |
| 150 Microwave Emission Labels | ✔ | ✔ | |||
| Guide to PAT Testing | ✔ | ||||
| CD Guide to PAT Testing as a Business | ✔ |
