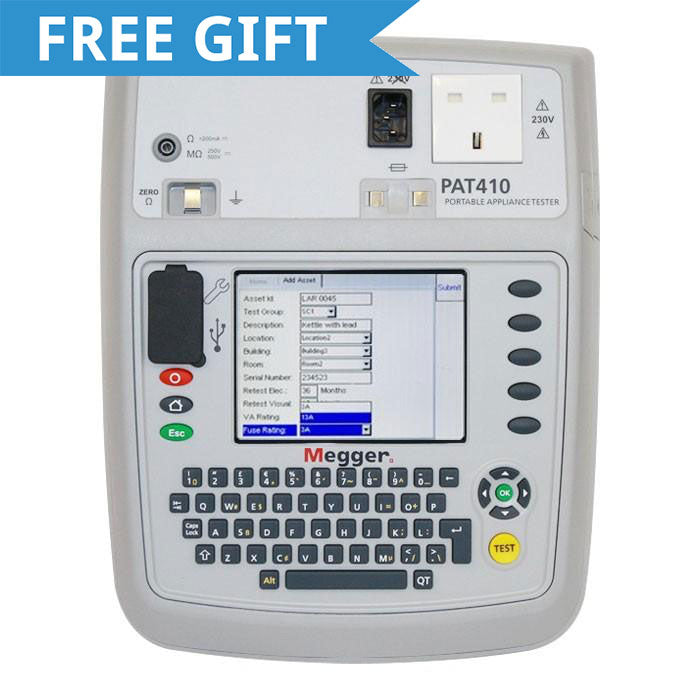

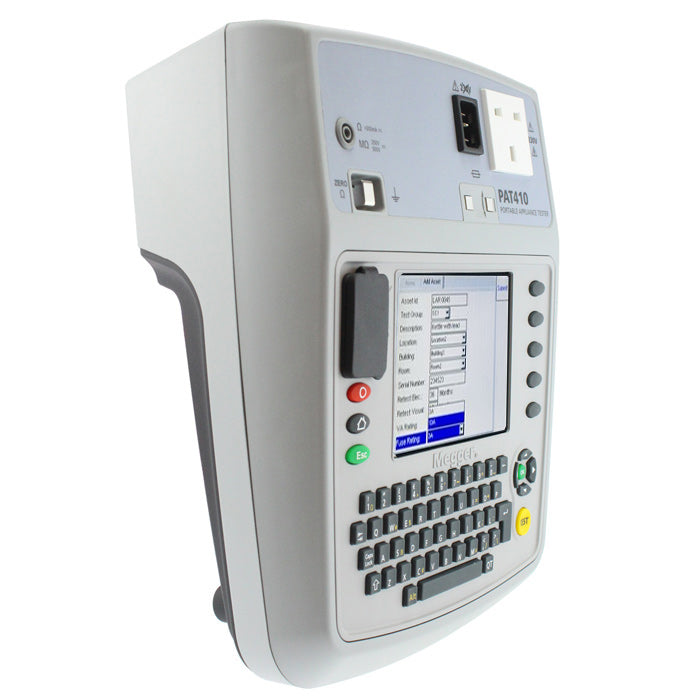

Megger PAT410 PAT Tester
- 10,000 results with accompanying applince info saved to internal memory
- QWERTY keyboard and function buttons streamline operation
- Ideally suited to large workloads in both domestic and commercial settings
The Megger PAT410 is a new generation of downloading portable appliance tester offering fully compliant, high speed PAT testing abilities and optimised to provide results storage and download functions. The Megger 410 is ideal for frequent and high volume electrical appliance testing.
Ideal for use in domestic and commercial environments, the PAT410 tester is also suitable for testing sensitive IT equipment. The automatic testing mode offered by the Megger PAT410 PAT tester enables users to define their own test sequence so that operation can be tailored to specific testing requirements.
The Megger PAT410 portable appliance tester is efficient at handling test results with an onboard memory that will hold up to 10,000 records; these can then be downloaded via USB to a PC for further trending and analysis.
With the addition of a QWERTY keyboard for fast data entry and 5 hot-keys giving direct access to frequently used functions, the Megger 410 PAT Tester improves productivity and speed by streamlining the PAT testing process without compromising on the quality or accuracy of the instrument.
Key Features
- Full range of PAT testing including 250V insulation and RCD testing
- Vast 10,000 result memory storage with USB download
- Large full colour display with test results and Pass/Fail indication
- Instant re-start as you move from room to room when testing
- Direct access keys and QWERTY keyboard for efficient operation
| PAT320 | PAT350 | PAT410 | PAT420 | PAT450 | |
|---|---|---|---|---|---|
| Earth Bond Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| IT Safe (200mA test current) | ✔ | ✔ | ✔ | ✔ | ✔ |
| Insulation Test (250V, 500V) | ✔ | ✔ | ✔ | ✔ | ✔ |
| Substitute Leakage Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Differential Leakage Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Touch Current Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Portable RCD Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Extension Lead Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Fuse Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Operational Test | ✔ | ✔ | ✔ | ✔ | ✔ |
| Flash Test | ✔ | ✔ | |||
| 230V and 110V Operation | ✔ | ✔ | ✔ | ✔ | |
| Internal Memory (10,000 results) | ✔ | ✔ | ✔ | ||
| Downloadable (USB) | ✔ | ✔ | ✔ | ||
| QWERTY Keyboard | ✔ | ✔ | ✔ |
Continuity test (200mA)
- Voltage: 4V DC
- Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
- Resistance resolution: 10 mΩ (1 to 19.99 Ω)
- Display range: 0 to 19.99 Ω
Insulation test (250/500V)
- Resistance accuracy: ±2% ±5 digits (0 to 19.99 MΩ), ±5% ±10 digits (20 to 99.99 MΩ)
- Resistance resolution: 0.01 MΩ
- Display range: 0 to 99.99 MΩ
Substitute leakage test
- Voltage: 40V AC nominal mains frequency
- Current accuracy: ±5% ±5 digits
- Current resolution: 0.01mA
- Display range: 0 to 19.99mA
Differential leakage test
- Voltage: Nominal mains supply
- Current accuracy: ±5% ±5 digits
- Current resolution: 0.01mA
- Display range: 0 to 19.99mA
Touch current test
- Voltage: Nominal mains supply
- Current accuracy: ±5% ±5 digits
- Current resolution: 0.01mA
- Display range: 0 to 10mA
Operational test
- Voltage: Nominal mains supply
- VA accuracy: ±5% ±10 digits (0 - 99 VA), ±5% ±50 digits (100 VA - 999 VA), ±5% ±100 digits (1000 VA - 3700 VA)
- Resolution: 1 VA (0 to 3700 VA)
- Display range: 0 to 3999 VA
Extension lead test
- Tests performed: Bond, insulation and polarity
- Polarity test voltage: 12V
- Polarity checks: Lead OK, Live neutral S/C, Live neutral reversed, Live/neutral O/C
Portable RCD test
- Voltage: Nominal mains supply
- Current accuracy: -8% to -2% (1/2 x I), +2% to +8% (1 x I, 5 x I)
- Trip time accuracy: ±1% ±5 digits
- Trip time resolution: 0.1ms
- Display range: 0 to 1999 ms (1/2 x I), 0 to 300 ms (1 x I), 0 to 40 ms (5 x I)
Fuse test
- Voltage: 3.3V
- Warning: Audible bleep if fuse is OK
- Supply range: 230V at 50Hz
- Compliance: IEC 61010-1, CAT II 300V, IEC 61326-1, 61326-2-2
- Dimensions: 145 x 255 x 320mm
- Weight: 2.7kg

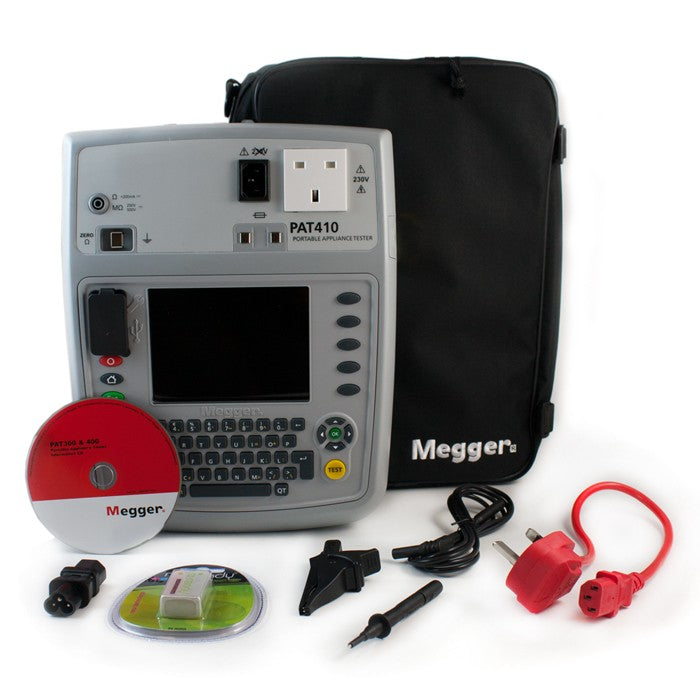

The Megger PAT410 comes with:
- Earth Bond Test Lead
- Extension Lead Adaptor
- Cloverleaf Adaptor
- Calibration Certificate
- Instruction Manual & CD
- Carry Case
The Megger PAT410 PAT Tester is available in a range of kits:
| Kit A | Kit B | Kit C | Kit D | Kit E | |
|---|---|---|---|---|---|
| Megger PAT410 | ✔ | ✔ | ✔ | ✔ | ✔ |
| Megger Powersuite Pro Lite PAT Software | ✔ | ✔ | |||
| Megger Powersuite Professional Contractor PAT Software | ✔ | ✔ | |||
| Megger PAT Label Printer | ✔ | ✔ | ✔ | ||
| 2 x Megger PAT Label Cartridges | ✔ | ✔ | ✔ | ||
| Megger Barcode Scanner | ✔ | ✔ | ✔ | ||
| Microwave Leakage Detector | ✔ | ✔ | ✔ | ✔ | |
| 150 Microwave Emission Labels | ✔ | ✔ | ✔ | ✔ | |
| IEC Clover Leaf Adapter | ✔ | ✔ | ✔ | ✔ | ✔ |
| IEC PAT Adaptor Kit | ✔ | ✔ | ✔ | ✔ | ✔ |
| 110V Appliance Adaptor | ✔ | ✔ | ✔ | ✔ | ✔ |
| 110V Extension Lead Adaptor | ✔ | ✔ | ✔ | ✔ | ✔ |
| Pass Labels | 1000 | 500 | 1000 | 1000 | 1000 |
| Fail Labels | 400 | 200 | 400 | 400 | 400 |
| PassWrap Cable Labels | 250 | 250 | 250 | 250 | |
| 230V Extension Lead Adaptor | ✔ | ✔ | ✔ | ✔ | ✔ |
| Calibration Certificate | ✔ | ✔ | ✔ | ✔ | ✔ |
| PAT410 Carry Case | ✔ | ✔ | ✔ | ✔ | ✔ |
