Kewtech SMARTPAT PAT Tester

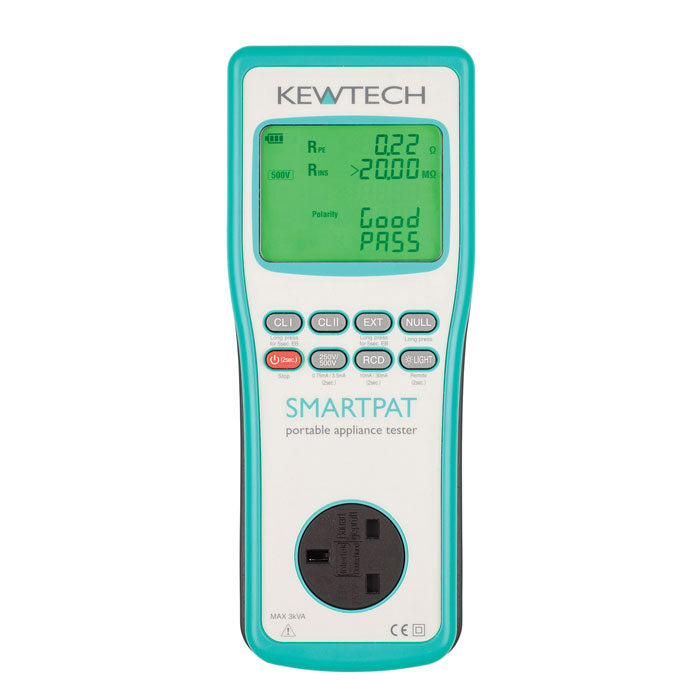

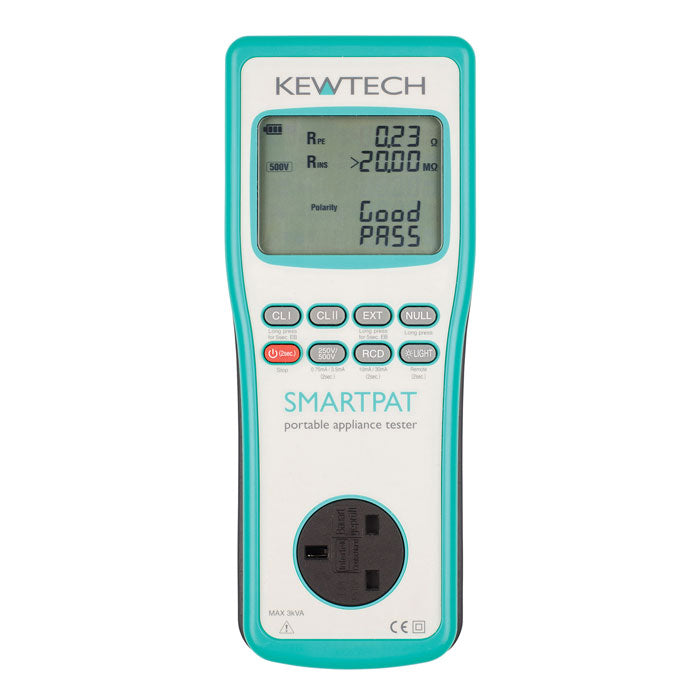

 The Kewtech SMARTPAT PAT Tester is a battery-powered PAT tester that is nevertheless capable of performing load and run testing for 110V and 230V appliances. An RCD test function is also available. These advanced test functions sit alongside a 200mA continuity test, insulation resistance test, substitute leakage test and polarity check for extension leads.

Load and run testing constitutes an important testing function as it enables the testing of earth leakage current and total current drawn in handheld appliances that can pose a greater risk. The Kewtech SMARTPAT’s no-trip RCD testing function, meanwhile, helps test tripping in 10mA and 30mA devices. Further versatility is added by a 5s duration continuity test and a lower 250V insulation resistance test voltage for assessing surge-protected extension leads. A test lead nulling function aids accuracy by adjusting for resistance in test leads.

Class I and Class II appliances and extension leads can be tested using the Kewtech SMARTPAT’s one-button automatic test sequences. Test sequences can be customised using the KEWPAT App, soon to be available for free on Android, which can also exercise remote control over the PAT tester. Results and a PASS/FAIL indication are shown on the LCD screen which flashes red to indicate failure and green to indicate a pass.

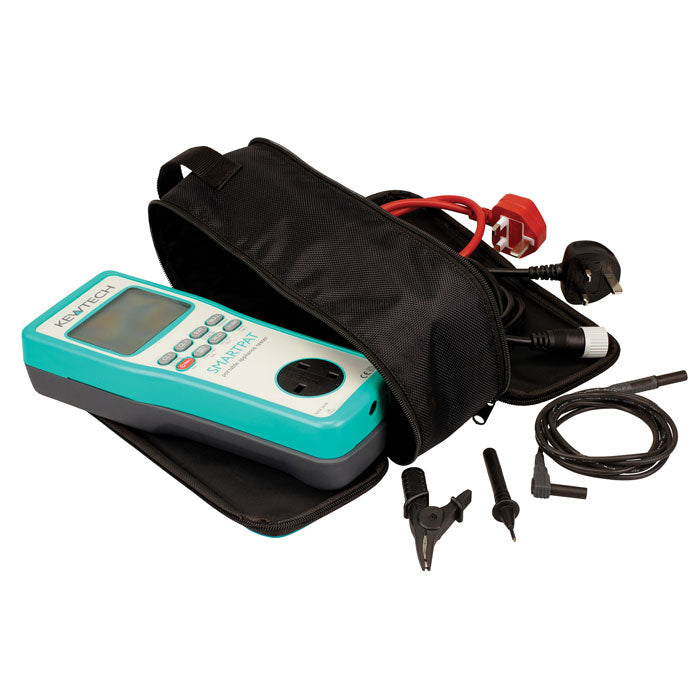

The Kewtech SMARTPAT comes supplied with an extension lead adaptor, earth bond test lead, crocodile clip, carry case and mains lead. The battery will power roughly 1400 test sequences and the PAT tester’s compact size makes it easy to store and transport.

Kewtech part number: SMARTPAT

Key Features

• Battery powered
• Load and run testing on 110V/230V appliances
• No-trip portable RCD testing function
• 200mA continuity test (5s duration)
• 250V500V insulation test
• Automatic test sequences
• Remote control with KEWPAT app

Protective Conductor Resistance Test

• Measuring range: 0.00 - 20.00 Ω (NULL value inc)*
• Over-range indication: > 20.00 Ω
• Resolution: 0.01Ω
• Open-circuit voltage: 5 V ±0.4 V DC
• Measuring current: 200 mA DC (nominal value)
• Accuracy: ±3%rdg ±5dgt

Mains Voltage

• Display range: 30 - 270 V
• Hi/ Lo indication: < 30 V: No voltage indication; > 270 V: 270 V
• Resolution & Accuracy: 1 V & ±3%rdg ±5dgt

Insulation

• Rated voltage: 250V / 500V
• Measuring range: 0.00 - 20.00 MΩ
• Over-range indication: > 20.00 MΩ
• Resolution: 0.01 MΩ
• No-load voltage: 250 V DC +20%, -0% / 500 V DC +20%, -0%
• Short-circuit current: 1.5 mA DC or less
• Rated current :1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
• Accuracy: ±2%rdg±3dgt

Substitute Leakage

• Measuring range 0.10 - 12.00 mA rms
• Over-range indication > 12.00 mA
• Resolution 0.01mA
• Open-circuit voltage/ Freq. 30 V ±5 V rms / 50 Hz ±5%
• Measuring current 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
• Accuracy ±3%rdg±5dgt

Insulation Test Between L-N

• Open-circuit voltage: 4.5 V ±0.5 V DC
• Criteria of judgement: 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted.

Run Leakage (Item: Load current / Leakage current)

• Mains voltage range: 100 - 253 V / 50 Hz
• Measuring range: 0.10 - 13.00 A rms 0.10 - 20.00 mA rms
• Display range: 0.00 - 13.00 A 0.00 - 20.00 mA
• Over-range indication: > 13.00 A > 20.00 mA
• Resolution: 0.01A / 0.01mA
• Accuracy: ±10%rdg ±5dgt / ±3%rdg ±5dvgt
• Max. rating: 3 kVA max., 15 sec. cont. / -

RCD Test

• Rated voltage 230 V - 15% to +10% / 50Hz
• Rated current 10 mA / 30 mA
• Test duration ×1: 0.0 ms - 500.0 ms / ×5: 0.0 ms - 40.0 ms
• Test current accuracy: 2% - 8%
• Operating time accuracy: ±2 ms ( 40 ms) ±8 ms (>40 ms)

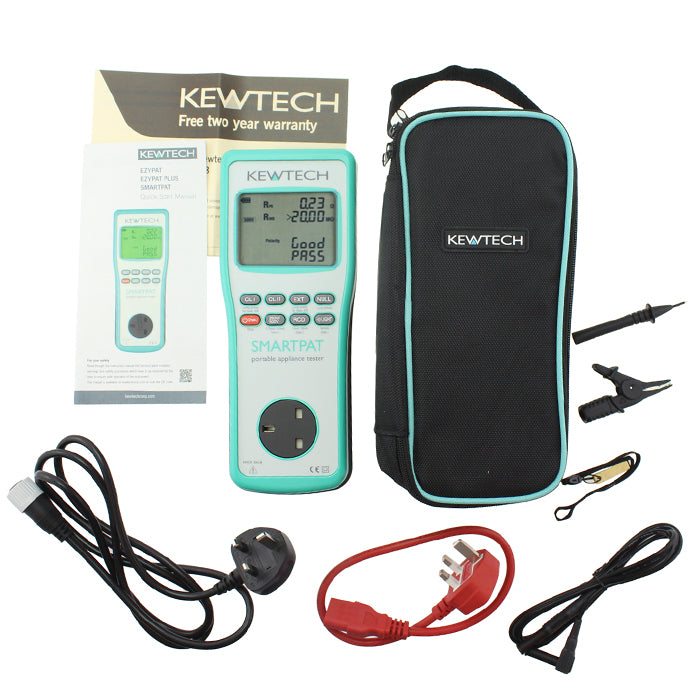

The Kewtech SMARTPAT PAT Tester comes with:

• Kewtech SMARTPAT PAT Tester
• Mains leads
• Earth lead with probe and croc clip
• Extension lead adapter
• Carry bag with strap
• Quickstart manual
• End of line Cal Cert
