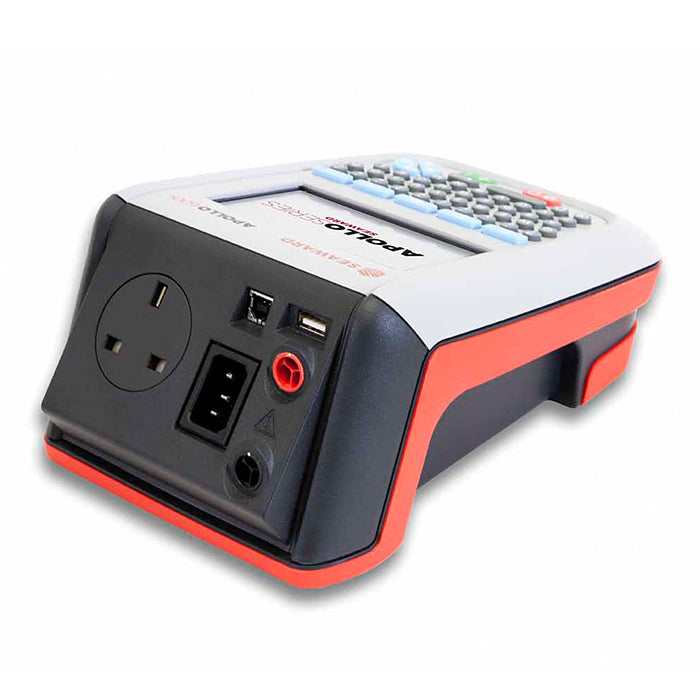

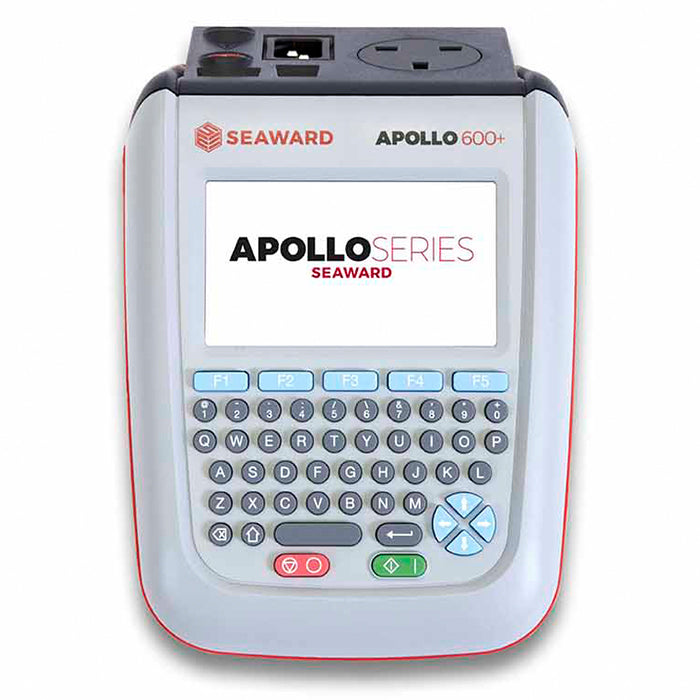

Seaward Apollo 600+ Pro Printer & PATGuard Elite Kit (380A9891)

The Seaward Apollo 600+ PAT Tester benefits from an extensive upgrade from the previous Apollo 600 model. All new firmware has improved the onboard interface and introduced a search function to the database. The tester is now also compatible with QR code production, working in conjunction with a Seaward Test n Tag Elite 2 Printer, and it can also read barcodes when used with an appropriate scanner. QR codes allow the user to scan a label with their own smartphone and see test data for themselves. Finally, a new external rechargeable battery pack allows the user to exchange batteries during operation so downtime is minimised.

A top of the range portable PAT Tester from market leaders Seaward Electronics, the Apollo 600+ is designed with ergonomics in mind, offering a wide range of features for testing 230V, 110V Appliances, 3 phase equipment and IT equipment, alongside ground-breaking integrated Risk Assessment tools. The tester now comes with an external battery pack and has a full firmware update which makes it compatible with QR codes.

The Seaward Apollo 600+’s sturdy lightweight design makes it perfect for use in any situation and boats a full QWERTY keypad, clear navigation and full colour display, making it one of the most user-friendly instruments on the market.

This kit includes a one-year subscription to PATGuard Elite, the recommended software for creating professional reports and organising Risk Assessment data, as well as the Seaward Pro Printer, a compact printer used to print asset numbers, barcodes, test dates and more. With one of the lowest running costs available (less than 10p per label), the Seaward Pro Printer is a very useful tool and the labels included in this kit are made of a high quality synthetic material suitable for demanding environments.  We offer the option of an infinite licence for an additional cost when buying this product.

Also included is the Seaward Barcode Scanner, the ideal tool for scanning PAT Labels with barcodes printed on them. Powered by 2 AAA batteries, the Seaward Barcode Scanner is Bluetooth compatible for full wireless operation.

Seaward part number: 380A9894

Seaward Apollo 600+ PAT Tester Main Features:

• Lightweight, Compact Design – Fits within the users hands comfortably for one-handed use.
• Internal Memory – Record up to 10,000 assets on built-in storage, then download via USB and Bluetooth.
• Onboard Camera – Take photos with rear-facing camera and store up to 2000.
• Built-In Risk Assessment Certificates
• Point-to-point tests for fixed appliances
• Full QWERTY keyboard – Allows quick and effective editing of data, with clear function buttons.
• Risk Assessment Tool – Enter environmental details and the tester will recommend a re-test date based on the equipment type and environmental risks.

Seaward Apollo 600+ Pro Printer & PATGuard Elite Kit Includes:

• Seaward Apollo 600+ PAT Tester with included accessories
• Seaward PATGuard Elite 3 (1 Year Licence → upgradable to Infinite Licence)
• Seaward Test n’ Tag PRO Printer
• Seaward Bluetooth Barcode Scanner
• Seaward Apollo Carry Case 71G109
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor

For more information on the Seaward Apollo 600+ PAT Tester please click here.

Earth Continuity

• Test Current: +/- 200mA DC
• Display Range: 0.01 – 19.99Ω
• Pass Value: User Defined

Insulation Resistance

• Test Voltage: 500V / 250V DC @ 1mA nominal
• Display Range: 0.01MΩ - 19.99MΩ
• Pass Value: User Defined

IEC Lead Test

• Test voltage: 5V AC nominal
• Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

• Test Voltage: Supply voltage, maximum load current 16A
• Display Ranges: 0.01mA to 19.99mA
• Pass Value: User Defined

Touch Current

• Test Voltage: Supply Voltage, maximum load current 16A
• Display Range: 0.00 – 3.50mA
• Pass Value: User defined

Load Power/Current

• Test Voltage: 230V +10%, -15%, maximum load current 16A
• Test Duration: Programmable up to a maximum of 255s depending on load
• Display Range: 0.00kVA – 4.00kVA, 0.00A – 16.00A

Alternative Leakage Current

• Test Voltages: >25Vac <50Vac
• Display Range: 0.00mA to 19.99mA
• Pass Value: User Defined

RCD Test

• Test Voltage: 230V +10%, -15%
• Test Current: 15mA / 30mA rms sinusoidal
• Display Range: 0ms - 2000ms
• Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

• Voltage Range: 207V – 253Vac
• Indicates configuration of voltage potential: Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

• Memory size: 50,000 records & 2000 photos
• Weight: 1.5kg
• Dimensions: 230mm x 150mm x 100mm
• Power Source: Mains or rechargeable battery pack

• Seaward Apollo 600+ PAT Tester & included accessories
• Seaward PATGuard Elite 3 (1 Year License → upgradable to Infinite License)
• Seaward Test n’ Tag PRO Printer
• Seaward Bluetooth Barcode Scanner
• Seaward Apollo Carry Case 71G109
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
