Seaward Apollo 600+ Pro Printer Kit (380A9890)
- Supplied with a Test N Tag PRO Printer and labels
- Advanced risk assessment and re-test recommendation function
- QWERTY keyboard allows swift data entry into large memory
Description
The Seaward Apollo 600+ PAT Tester benefits from an extensive upgrade from the previous Apollo 600 model. All new firmware has improved the onboard interface and introduced a search function to the database. The tester is now also compatible with QR code production, working in conjunction with a Seaward Test n Tag Elite 2 Printer, and it can also read barcodes when used with an appropriate scanner. QR codes allow the user to scan a label with their own smartphone and see test data for themselves. Finally, a new external rechargeable battery pack allows the user to exchange batteries during operation so downtime is minimised.
The Apollo 600+ is a top of the range portable PAT Tester from market leaders Seaward Electronics. It now boasts enhanced firmware - enabling use with QR codes - and an external battery pack.
Combining user-friendliness with a wide range of features for testing 230V, 110V Appliances and 3 phase equipment as well as IT equipment, the Apollo 600+ features ground-breaking intergrated Risk Assessment tools.

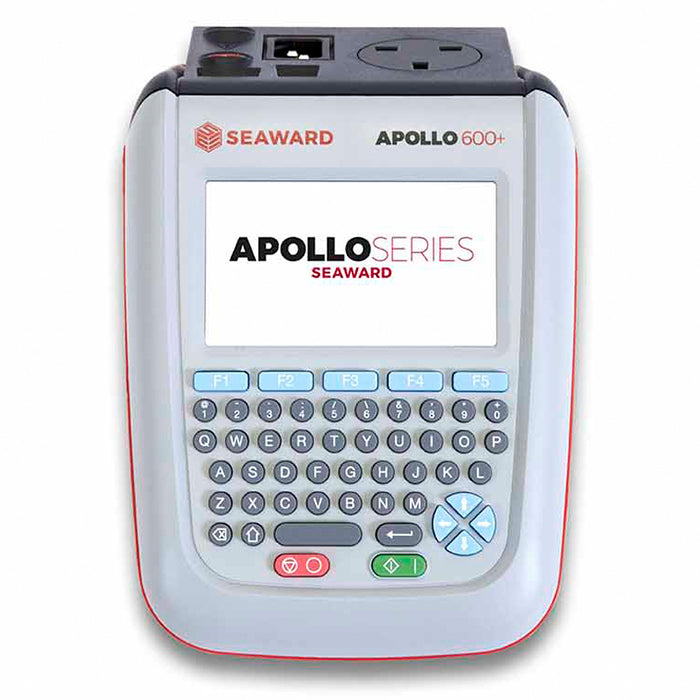

The Seaward Apollo 600+’s lightweight compact design makes it perfect for use in any situation and its full QWERTY keypad, clear navigation and full colour display make it one of the most user-friendly instruments on the market.
This kit features the Seaward Pro Printer, a portable printer used to print asset numbers, usernames, test status, barcodes, test dates and next date due data. This official Seaward printer has one of the lowest running costs available at less than 10p per label. The labels included are made of a high quality synthetic material suitable for demanding environments.
The Seaward Barcode scanner included is the ideal tool for scanning PAT Labels which have barcodes printed on them. Extremely light and easy to use, the scanner is powered by 2 AAA batteries and is Bluetooth compatible for full wireless operation.
Seaward part number: 380A9890
Seaward Apollo 600+ PAT Tester Main Features
- Lightweight, Robust Design – Comfortably fits within the users hands, allowing one-handed use.
- Built-In Memory – Stores up to 10,000 assets, allowing download via USB and Bluetooth.
- Integrated Camera – Take images and store up to 2000 to aid traceability.
- In-Built Risk Assessment Certificates
- Point-to-point testing for fixed appliances
- Full QWERTY keyboard – Allows quick effective editing of data, with clear function buttons.
- Risk Assessment Tool – Enter environmental details and the Apollo 600+ will recommend a re-test date based on equipment type and environmental risks.
Seaward Apollo 600+ Pro Printer Kit Includes:
- Seaward Apollo 600+ PAT Tester with included accessories
- Seaward Test n’ Tag PRO Printer
- Seaward Bluetooth Barcode Scanner
- Seaward Apollo Carry Case 71G109
- 110V Appliance Adaptor
- 110V Extension Lead Adaptor
- Free: 10 x printer label rolls
For more information on the Seaward Apollo 600+ PAT Tester please click here.
| PATGuard Elite Kit | Pro Printer Kit (380A9890) | Pro Printer + PATGuard Elite Kit (380A9891) | Elite Printer Kit (380A9893) | Elite Printer + PATGuard Elite Kit (380A9894) | |
|---|---|---|---|---|---|
| Seaward Apollo 600+ Included Accessories | ✔ | ✔ | ✔ | ✔ | ✔ |
| Seaward PATGuard Elite 3 | 1-Year (Upgradable) | 1-Year (Upgradable) | 1-Year (Upgradable) | ||
| Seaward Test n' Tag PRO Printer | ✔ | ✔ | |||
| Seaward Test n Tag ELITE 2 Printer | ✔ | ✔ | |||
| Seaward Bluetooth Barcode Scanner | ✔ | ✔ | |||
| Seaward Bluetooth QR and Barcode Scanner | ✔ | ✔ | |||
| Seaward Apollo Carry Case 71G109 | ✔ | ✔ | ✔ | ✔ | |
| 110V Appliance Adaptor | ✔ | ✔ | ✔ | ✔ | ✔ |
| 110V Extension Lead Adaptor | ✔ | ✔ | ✔ | ✔ | ✔ |
| IEC Adaptor Kit | ✔ | ||||
| 1000 Pass Labels, 200 Fail Labels & 250 Pass Wrap Labels |
✔ |
Specification
Earth Continuity
- Test Current: +/- 200mA DC
- Display Range: 0.01 – 19.99Ω
- Pass Value: User Defined
Insulation Resistance
- Test Voltage: 500V / 250V DC @ 1mA nominal
- Display Range: 0.01MΩ - 19.99MΩ
- Pass Value: User Defined
IEC Lead Test
- Test voltage: 5V AC nominal
- Test: Live / Neutral Checks for o/c, s/c and crossed
Protective Conductor Current/Load
- Test Voltage: Supply voltage, maximum load current 16A
- Display Ranges: 0.01mA to 19.99mA
- Pass Value: User Defined
Touch Current
- Test Voltage: Supply Voltage, maximum load current 16A
- Display Range: 0.00 – 3.50mA
- Pass Value: User defined
Load Power/Current
- Test Voltage: 230V +10%, -15%, maximum load current 16A
- Test Duration: Programmable up to a maximum of 255s depending on load
- Display Range: 0.00kVA – 4.00kVA, 0.00A – 16.00A
Alternative Leakage Current
- Test Voltages: >25Vac <50Vac
- Display Range: 0.00mA to 19.99mA
- Pass Value: User Defined
RCD Test
- Test Voltage: 230V +10%, -15%
- Test Current: 15mA / 30mA rms sinusoidal
- Display Range: 0ms - 2000ms
- Test method: Internal isolation to avoid tripping distribution board RCD
Power Socket Test
- Voltage Range: 207V – 253Vac
- Indicates configuration of voltage potential: Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth
General
- Memory size: 50,000 records & 2000 photos
- Weight: 1.5kg
- Dimensions: 230mm x 150mm x 100mm
- Power Source: Mains or rechargeable battery pack
Supplied Accessories
The Seaward Apollo 600+ Pro Printer Kit comes with:
- Seaward Apollo 600+ PAT Tester with included accessories
- Seaward Test n’ Tag PRO Printer
- Seaward Bluetooth Barcode Scanner
- Seaward Apollo Carry Case 71G109
- 110V Appliance Adaptor
- 110V Extension Lead Adaptor
- Free: 10 x printer label rolls
