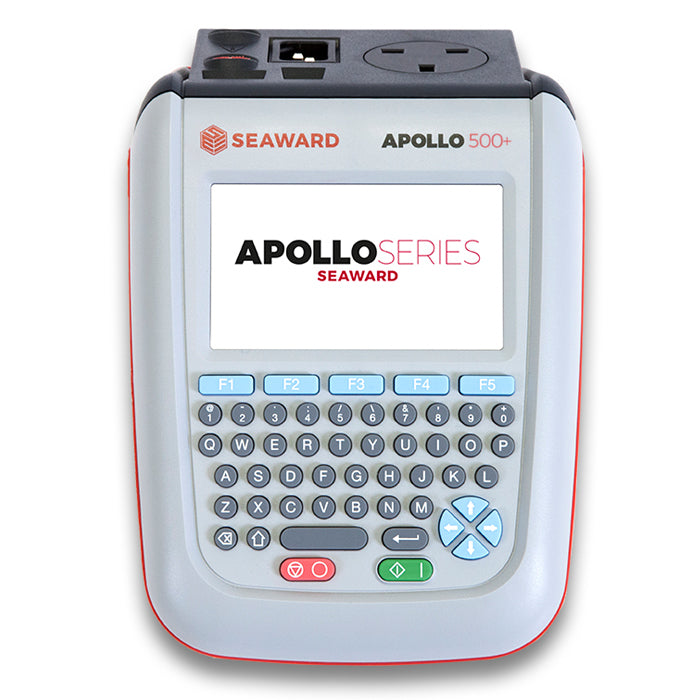

Seaward Apollo 500+ Elite Printer Kit (380A9899)

The Seaward Apollo 500+ PAT Tester now has all-new firmware with an improved user interface and a database search function. Furthermore, the tester can now work with a Seaward Test n Tag Elite 2 Printer and Seaward scanner to print and read QR-coded PAT labels. As well as providing more information, QR codes can be scanned by a customer using a smartphone in order to find out full PAT test results and information. A new external battery pack now allows the user to switch the rechargeable battery in the field, thus preventing downtime.

Seawards latest downloading PAT Testing kit comes complete with a durable custom PAT label printer and a lightweight Bluetooth scanner and boast one of the most modern user friendly PAT experiences available. A full firmware update means the tester can now work with QR codes and there is also an improved external battery pack.

With a huge memory capable of storing 10,000 test records, a large full colour display, full QWERTY keypad and built in Risk Assessment Tool the Apollo 500+ is one of the most versatile battery and mains powered tester currently on the market.

The Seaward Apollo 500+ can be used to test a wide range of appliances and environments such as 3 phase testing, earth continuity testing, point to point testing on fixed appliances and is also ideal for testing IT equipment along with built in RCD tests.

The Apollo fully utilizes Bluetooth data transfer technology by allowing users to pair both the Seaward Test N Tag Elite Printer and the Seaward Barcode Scanner. The Elite printer gives anyone the option to print custom labels containing Print asset number, username, test status, barcode, test date and next date due. The printer also gives business owners the option to add their company name and logo which adds a more professional element. The printer benefits from a low running cost at less than 10p per label.

Test procedures are similarly made more efficient when the tester is paired with the Bluetooth scanner. Simply scan printed PAT label barcodes to retrieve previous years information this eliminates the need for repeat data logging a massive time saving peace of mind.

Seaward part number: 380A9899

Seaward Apollo 500+ PAT Tester Main Features:

• Built in Risk Assessment Tool – PAT Tester with Risk Assessment form built in
• High Definition screen – Large colour screen
• Large internal memory – Apollo 500+ stores up to 10000 PAT results and records
• Extensive range of test procedures – quickly and effectively access basic and advanced tests
• Programmable user tests for non electrical tests and inspections
• Two ways to download/upload – Transfer data via USB cable or wirelessly via Bluetooth
• Full QWERTY Keypad – Speeds up data input
• IET compliant PAT Tester – Tester carries out all the tests recommended by the IET
• Advanced fixed appliance testing - Point to point testing on fixed appliances
• Plug and Play Technology – Designed to speed up testing with an intuitive navigation
• Ergonomically designed PAT Tester – Designed to fit comfortably in users hands

Seaward Apollo 500+ ELITE Printer Kit Includes:

• Seaward Apollo 500+ PAT Tester + included accessories
• Seaward Test n’ Tag ELITE 2 Printer
• Seaward Bluetooth Barcode Scanner
• Seaward Apollo Carry Case
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
• FREE 2 x Roll of 338 Elite extra durable labels (52x25mm)
• FREE 2 x Roll of 125 Elite extra durable labels (52x75mm)
• FREE 6 x Roll of 135 Test n' Tag ELITE 2 Labels (perforated 52x75mm)

For more information on the Seaward Apollo 500+ PAT Tester please click here.

We Have A Choice Of Five Seaward Apollo 500+ Kits:

Earth Continuity

• Test Current: +/- 200mA DC
• Display Range: 0.01 – 19.99Ω
• Pass Value: User Defined

Insulation Resistance

• Test Voltage: 500V / 250V DC @ 1mA nominal
• Display Range: 0.01MΩ - 19.99MΩ
• Pass Value: User Defined

IEC Lead Test

• Test voltage: 5V ac nominal
• Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

• Test Voltage: Supply voltage, maximum load current 16A
• Display Ranges: 0.01mA to 19.99mA
• Pass Value: User Defined

Touch Current

• Test Voltage: Supply Voltage, maximum load current 16A
• Display Range: 0.00 – 3.50mA
• Pass Value: User defined

Load Power/Current

• Test Voltage: Supply Voltage, maximum load current 16A
• Test Duration: Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads.
• Display Range: 0.00kVA – 4.00kVA 0.00A – 16.00A

Alternative Leakage Current

• Test Voltages: >25Vac <50Vac
• Display Range: 0.00mA to 19.99mA
• Pass Value: User Defined

RCD Test

• Test Voltage: 230V +10%,-15%
• Test Current: 30mA / 150mA rms sinusoidal
• Display Range: 0ms - 2000ms (30mA), 0-40ms (150mA)
• Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

• Voltage Range: 207V – 253V AC Indicates configuration of voltage potential:- Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

• Memory size 10,000 records
• Weight 1.5kg
• Dimensions 230mm x 150mm x 100mm
• Power Source Mains or Rechargeable battery pack

The Seaward Apollo 500+ Elite Printer Kit comes with:

• Seaward Apollo 500+ PAT Tester with included accessories
• Seaward Test n’ Tag ELITE 2 Printer
• Seaward Bluetooth Barcode Scanner
• Seaward Apollo Carry Case
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
• FREE 2 x Roll of 338 Elite extra durable labels (52x25mm)
• FREE 2 x Roll of 125 Elite extra durable labels (52x75mm)
• FREE 6 x Roll of 135 Test n' Tag ELITE 2 Labels (perforated 52x75mm)
