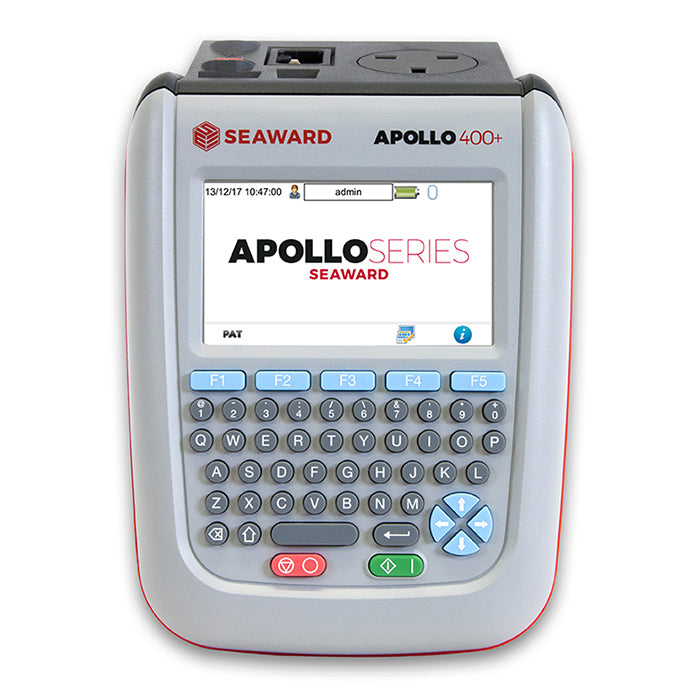

Seaward Apollo 400+ Elite Printer & PATGuard Elite Kit (380A9907)

The Seaward Apollo 400+ PAT Tester has had a major revamp. It now has extensively updated firmware which has improved the interface compared to the old Apollo 400 tester as well as introducing a database search function. There is also an external battery pack which allows the rechargeable battery to be changed in the field with minimal disruption so the user can carry on testing when the battery runs out.

The most comprehensive kit for the Seaward Apollo 400+, offering the perfect PAT instrument for those seeking straight-forward and efficient testing, boasting storage for up to 2000 appliance records and 25 inbuilt auto sequence tests. The tester now boasts improved firmware and an easily interchangeable external battery pack.

The Seaward Apollo 400+ Elite Printer & PATGuard Elite Kit features a one-year license for Seaward PATGuard Elite 3, the recommended software package for creating professional reports, as well as the Seaward Test N' Tag Elite Printer and Barcode Scanner. We do offer the option of upgrading to an infinite licence for an additional cost when buying this product.

Providing custom label printing, the Test 'n' Tag ELITE allows users to include asset number, username, test status, barcode, test date and next date due on their labels, as well as the option to add their name, company or logo for a more professional appearance. The printer is also cheap to run, benefiting from a low running cost of less than 10p per label.

The Seaward Barcode Scanner is another useful time-saving tool, allowing the user to scan printed PAT label barcodes to retrieve previous information, eliminating the need for repeat data logging.

Seaward part number: 380A9907

Seaward Apollo 400+ PAT Tester Main Features:

• Downloadable PAT tester with built-in QWERTY keyboard
• Battery-powered, portable tester (weighing just 1.5kg)
• Store and download up to 2000 apppliance records
• Features 25 pre-defined auto sequence tests
• Connects via Bluetooth to Seaward PAT printers and scanners
• Carry out tests to ensure full compliance with the 4th Edition IET Code of Practice
• Suitable for point to point testing for fixed appliances
• Compatible with Seaward PATGuard 3 software
• The basic model within Seaward's Apollo range (includes Apollo 400+/500+/600+)
• Supplied with UKAS calibration certificate and a 2 year warranty

Seaward Apollo 400+ Elite Printer & PATGuard Elite Kit Includes:

• Seaward Apollo 400+ PAT Tester & included accessories
• Seaward PATGuard Elite 3 (1 Year Licence → upgradable to Infinite Licence)
• Seaward Test n’ Tag ELITE 2 Printer
• Bluetooth Barcode Scanner
• Seaward Apollo Carry Case 71G109
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor

For more information on the Seaward Apollo 400+ PAT Tester, please click here.

We Have A Choice Of Five Seaward Apollo 400+ Kits

Earth Continuity

• Test Current: +/- 200mA DC
• Display Range: 0.01 – 19.99Ω
• Pass Value: User Defined

Insulation Resistance

• Test Voltage: 500V / 250VDC @ 1mA nominal
• Display Range: 0.01MΩ - 19.99MΩ
• Pass Value: User Defined

IEC Lead Test

• Test voltage: 5VAC nominal
• Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

• Test Voltage: Supply voltage, maximum load current 16A
• Display Ranges: 0.01mA to 19.99mA
• Pass Value: User Defined

Touch Current

• Test Voltage: Supply Voltage, maximum load current 16A
• Display Range: 0.00 – 3.50mA
• Pass Value: User defined

Load Power/Current

• Test Voltage: Supply Voltage, maximum load current 16A
• Test Duration: Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads.
• Display Range: 0.00kVA – 4.00kVA, 0.00A – 16.00A

Alternative Leakage Current

• Test Voltages: >25VAC <50VAC
• Display Range: 0.00mA to 19.99mA
• Pass Value: User Defined

RCD Test

• Test Voltage: 230V +10%, -15%
• Test Current: 30mA / 150mA rms sinusoidal
• Display Range: 0ms - 2000ms (30mA), 0-40ms (150mA)
• Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

• Voltage Range: 207V – 253VAC
• Indicates configuration of voltage potential:- Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

• Memory size: 2000 records
• Weight: 1.5kg
• Dimensions: 230mm x 150mm x 100mm
• Power Source: Mains or rechargeable battery pack

The Seaward Apollo 400+ Elite Printer & PATGuard Elite Kit comes with:

• Seaward Apollo 400+ PAT Tester & included accessories
• Seaward PATGuard Elite 3 (1 Year Licence → upgradable to Infinite Licence)
• Seaward Test n’ Tag ELITE 2 Printer
• Bluetooth Barcode Scanner
• Seaward Apollo Carry Case 71G109
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
