Metrel GammaPAT Pro PAT Tester
- Stores up to 1700 results, downloadable PATLink Pro software
- Integrated PAT checkbox maintains accuracy of readings
- Testing efficiency enhanced by auto test sequences
The Metrel GammaPAT Pro is a downloadable PAT tester complete with PAT software for acquiring test data and creating professional appliance certification. In addition the GammaPAT MI3311 tester has a unique, built in calibration checkbox for ensuring the ongoing accuracy of the tester in compliance with the IEE Code of Practice.
The Metrel Gamma PAT Pro has two modes of operation suited to novice and more advanced PAT engineers requiring an efficient portable appliance tester with straightforward operation. Equipped with rechargeable batteries and an inbuilt charger, this tester is ideal for on-site electrical safety testing without the risk of an unexpected loss of power.
The Metrel MI3311 PAT tester clearly displays test results with Pass or Fail indication and can store up to 1700 results which can have appliance IDs assigned to them. Using the provided Metrel PAT Link Pro software package, results stored on the tester can be downloaded via USB to a PC for storage and the generation of professional PAT certificates for clients.
This downloading PAT tester is a fantastic investment for low to high volume users looking for an instrument capable of IEE compliance with extended features that allow for a more productive and professional appliance testing operation.
Key Features
- Store up to 1700 test results
- Download results and create PAT certificates using supplied PATLink Pro software
- Integrated PAT checkbox to check ongoing accuracy
- Auto test sequences to speed up appliance testing
- Rechargeable batteries with built-in charger
- Help screens offer guidance to novice users
| DeltaPAT | GammaPAT Lite | GammaPAT Pro | |
|---|---|---|---|
| Earth Bond Test (200mA) | ✔ | ✔ | ✔ |
| Insulation Test (250V, 500V) | ✔ | ||
| Insulation Test (50V, 500V) | ✔ | ✔ | |
| Differential Leakage Test | ✔ | ||
| Substitute Leakage Test | ✔ | ✔ | ✔ |
| Polarity Test | ✔ | ✔ | ✔ |
| Internal Memory | 1500 results | 1700 results | 1700 results |
| Downloadable | ✔ | Optional | ✔ |
| Bluetooth | ✔ | ||
| Compatible with Metrel Android App | ✔ | ||
| Comes with PATLinks Pro Software | ✔ |
- Earth Bond Continuity: Test current of 200mA
- Insulation Test: 50V or 500V DC Measuring range: 0.1 - 19.99 Mohms
- Substitute Leakage Test: Carried out at 40V DC
- Insulation-S Test: Insulation resistance of isolated accessible conductive parts.
- Substitute Leakage-S: Substitute leakage current of isolated accessible conductive parts.
- Polarity Test: IEC and Extension Lead internal wiring check.
- Weight & Dimensions: 1kg - 230x140x80

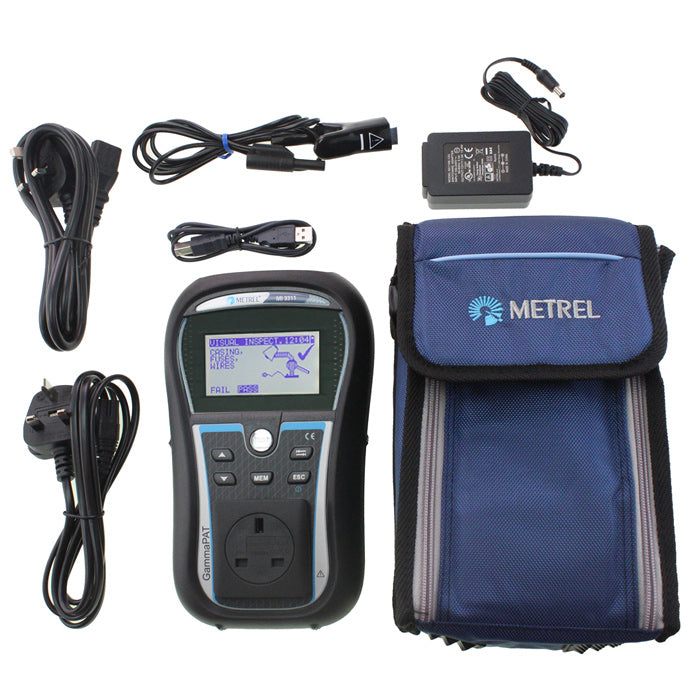

The Metrel GammaPAT Pro comes with:
- Metrel PATLink Pro software
- USB Download lead
- Earth bond test lead
- 230V Extension lead adaptor
- 6 x Rechargeable Batteries
- Carry Case and strap
- Calibration Certificate
- Instruction Manual
- 36 Month Warranty
The Metrel GammaPAT Pro PAT Tester is available in a range of kits:
- Metrel GammaPAT Pro Kit A
- Metrel GammaPAT Pro Kit B
- Metrel GammaPAT Pro Kit C
- Metrel GammaPAT Pro Bluetooth Kit
| Kit A | Kit B | Kit C | Bluetooth Kit | |
|---|---|---|---|---|
| Metrel MI3311 GammaPAT Tester | ✔ | ✔ | ✔ | ✔ |
| Metrel PATLink Pro Software | ✔ | ✔ | ✔ | ✔ |
| Metrel PAT Testing DVD | ✔ | |||
| Microwave Leakage Detector & 150 x Microwave Emission Labels | ✔ | ✔ | ✔ | |
| Metrel Bluetooth Printer & Roll of 2600 Printer Labels | ✔ | |||
| Metrel PATLink App & Bluetooth Dongle | ✔ | ✔ | ||
| Metrel TEK989 Socket Tester | ✔ | |||
|
IEC Clover Leaf Adaptor |
✔ | ✔ | ||
|
IEC PAT Adaptor Kit |
✔ | ✔ | ||
|
110V Appliance Adaptor & 110V Extension Lead Adaptor |
✔ | ✔ | ✔ | |
|
230V Extension Lead Adaptor & Earth Test Lead |
✔ | ✔ | ✔ | ✔ |
| 1000 Pass Labels, 200 Fail Labels & 250 PassWrap Cable Labels | ✔ | ✔ | ✔ | |
| USB Download Leads | ✔ | ✔ | ✔ | ✔ |
| Instruction Manual & Calibration Certificate | ✔ | ✔ | ✔ | ✔ |
| GammaPAT Carry Case & 6 x Rechargeable Batteries | ✔ | ✔ | ✔ | ✔ |
