Kewtech KT71 PAT Tester
- A simple, reliable tester for PAT testing beginners
- PASS/FAIL indication with actual test results also shown
- Low current earth bond test suitable for IT equipment
Currently unavailable for purchase
The Kewtech KT71 PAT Tester is no longer available. The nearest replacement is the Kewtech KT72 PAT Tester.

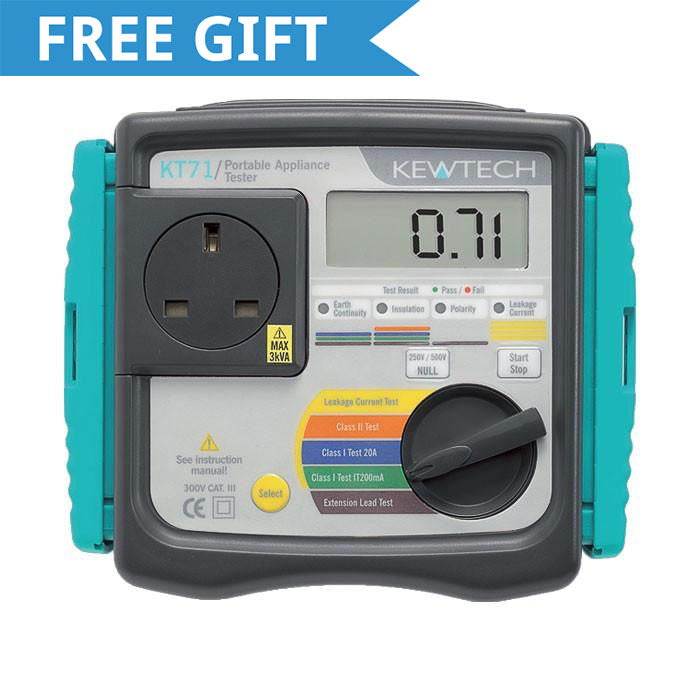

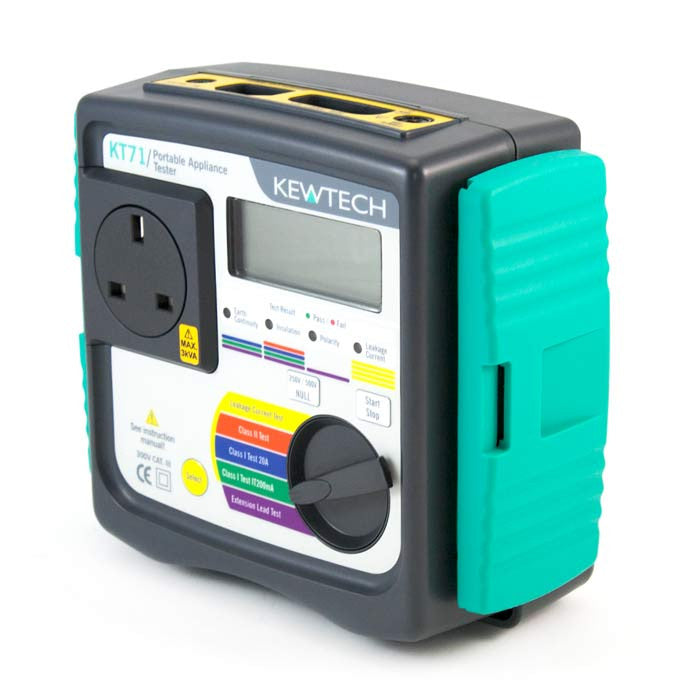

The Kewtech KT71 is a simple to use portable appliance tester offering automatic test sequences for straightforward, hassle free PAT testing of Class I, Class II and IEC/Extension Leads.
Use the rotary switch on the front of the KT71 to quickly select between testing Class I, Class II or IEC Leads and red or green LEDs will give indication of whether the appliance has Passed or Failed the electrical safety test. The KT71 portable appliance tester has the added benefit of displaying test values which can be used when filling out PAT certification.
The handheld Kewtech KT71 PAT tester is ideal for appliance testing in accordance with the IEE Code of Practice making it suitable for an in-house PAT testing regime or low volume asset testing. Quickly and accurately test office electrical and IT equipment as well as equipment found in domestic environments.
Key Features
- Quick & simple operation via large rotary switch
- Clear Pass/Fail indication and test readings
- Low current earth bond test for IT equipment
- Handheld, lightweight and mains powered
- Perfect for entry-level and low volume users
- Earth Bond Continuity: Test currents of 200mA DC or 20A AC (both nominal)
- Measuring range: 0 - 15.00 ohms
- Insulation Test: 250V or 500V DC Measuring range: 0.1 - 19.99 Mohms
- Run/Leakage Test: 0.1mA to 9.9mA , >10mA
- Polarity Test: Continuity < 10ohms (on Extension Lead Test only)
- Weight & Dimensions Unit without leads: 1.2kg - With leads 1.7kg - 180 x 160 x 90mm

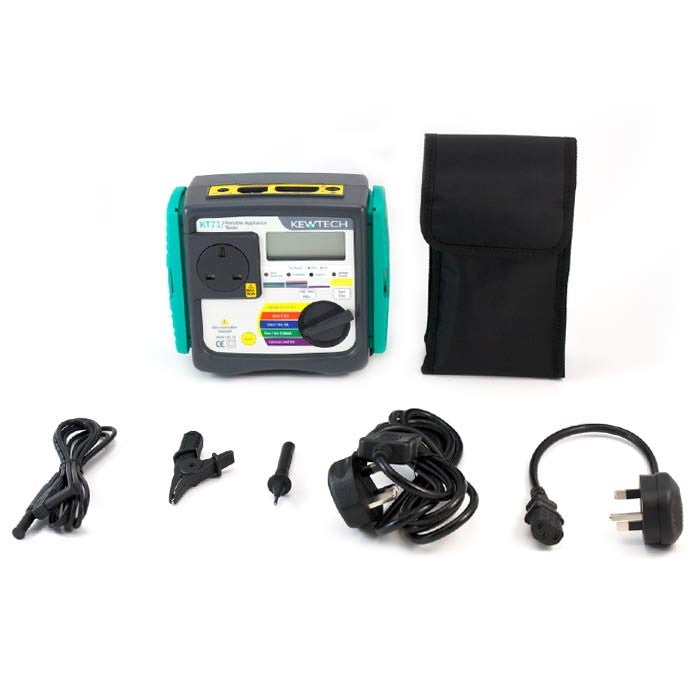

The Kewtech KT71 comes with:
- Earth Test Lead with Crocodile Clip
- Mains Lead
- 230V Extension Lead Adaptor
- Instruction Manual
- Certificate of Conformity
- 24 Month Warranty
The Kewtech KT71 PAT Tester comes in a range of kits:
| Kit A | Kit B | Kit C | Kit D | |
|---|---|---|---|---|
| Kewtech KT71 | ✔ | ✔ | ✔ | ✔ |
| Microwave Leakage Detector | ✔ | ✔ | ✔ | |
| Microwave Emissions Labels | ✔ | ✔ | ✔ | |
| PAT Certificate Pad | ✔ | ✔ | ||
| PAT Register Book w/ Frequency of Inspection | ✔ | ✔ | ✔ | ✔ |
| IEC Clover Leaf Adaptor | ✔ | ✔ | ✔ | |
| Kewtech KT103 Socket Tester | ✔ | ✔ | ✔ | ✔ |
| 1000 Pass Labels | ✔ | ✔ | ✔ | ✔ |
| 200 Fail Labels | ✔ | ✔ | ✔ | ✔ |
| 250 PassWrap Cable Labels | ✔ | ✔ | ✔ | |
| 250 Tuff Tag Cable Labels | ✔ | ✔ | ||
| 50 PassWrap Cable Labels | ✔ | |||
| Earth Test Lead | ✔ | ✔ | ✔ | ✔ |
| Mains Lead | ✔ | ✔ | ✔ | ✔ |
| 230V Extension Lead Adaptor | ✔ | ✔ | ✔ | ✔ |
| Calibration Certificate | ✔ | ✔ | ✔ | ✔ |
| Instruction leaflet on Kewtech KT71 | ✔ | ✔ | ✔ | ✔ |
| SimplyPATs Version 7 Software | ✔ | ✔ | ||
| 110V Appliance Adaptor | ✔ | ✔ | ||
| 110V Extension Lead Adaptor | ✔ | ✔ | ||
| Kewtech Universal PAT Carry Case | ✔ | ✔ |
