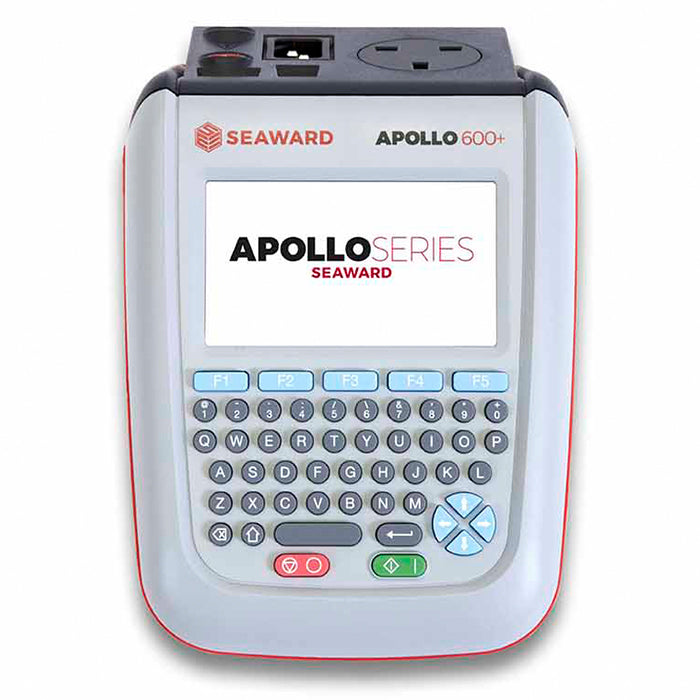

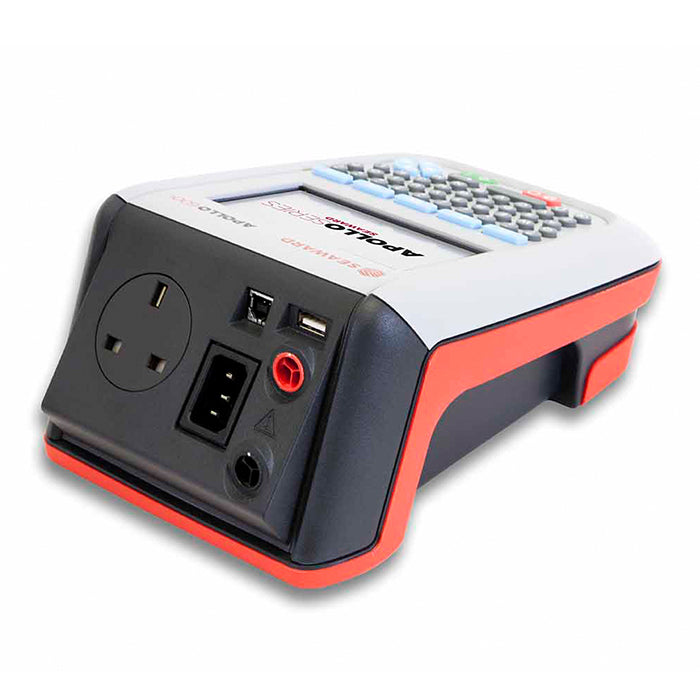

Seaward Apollo 600+ Kit with PATGuard Elite 3 Software

The Seaward Apollo 600+ PAT Tester benefits from an extensive upgrade from the previous Apollo 600 model. All new firmware has improved the onboard interface and introduced a search function to the database. The tester is now also compatible with QR code production, working in conjunction with a Seaward Test n Tag Elite 2 Printer, and it can also read barcodes when used with an appropriate scanner. QR codes allow the user to scan a label with their own smartphone and see test data for themselves. Finally, a new external rechargeable battery pack allows the user to exchange batteries during operation so downtime is minimised.

The Apollo 600+ is the top of the range downloading portable PAT Tester from market leaders Seaward Electronics. It is now even better thanks to a full firmware update which enables QR code functionality in addition to an external battery pack.

Combining usability and a wide range of features to speed up testing on IT equipment, 230V, 110V Appliances and 3 phase equipment, the Apollo 600+ features ground breaking built-in Risk Assessment tools allowing a user to record any potential hazards within the workplace and plan any corrective actions.

The Seaward Apollo 600+’s compact lightweight design makes it ideal for use in any situation and its full QWERTY keypad, clear navigation and full colour display make it one of the most user-friendly instruments available.

This versatile PAT Testing kit comes complete with a 1-year licence of Seaward PATGuard Elite 3 Software, the recommended package for creating professional reports and organising Risk Assessment data. The kit also offers an IEC Adaptor Kit, Labels and 110V Adaptors to cover you on even the most demanding jobs.

Seaward Apollo 600+ PAT Tester Main Features:

• Compact, Robust Design – comfortably fits within the users hands allowing one-handed use.
• Built-In Memory – Stores up to 10,000 assets, allowing download via USB and Bluetooth.
• Integrated Camera - Take and store up to 2000 images to aid traceability.
• In-Built Risk Assessment Certificates
• Point-to-point testing for fixed appliances
• Full QWERTY keyboard – Allows quick effective editing of data, with clear function buttons.
• Risk Assessment Tool – Enter environmental details and the Apollo 600 will recommend a re-test date based on equipment type and environmental risks.

Seaward Apollo 600+ with PATGuard Elite Kit Includes:

• Seaward Apollo 600+ PAT Tester with included accessories
• Seaward PATGuard Elite 3 (1 Year Licence → upgradable to Infinite Licence)
• 1000 Pass Labels
• 200 Fail Labels
• 250 Pass Wrap Labels
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
• IEC Adaptor Kit

For more information on the Seaward Apollo 600+ PAT Tester please click here.

Earth Continuity

• Test Current: +/- 200mA DC
• Display Range: 0.01 – 19.99Ω
• Pass Value: User Defined

Insulation Resistance

• Test Voltage: 500V / 250V DC @ 1mA nominal
• Display Range: 0.01MΩ - 19.99MΩ
• Pass Value: User Defined

IEC Lead Test

• Test voltage: 5V AC nominal
• Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

• Test Voltage: Supply voltage, maximum load current 16A
• Display Ranges: 0.01mA to 19.99mA
• Pass Value: User Defined

Touch Current

• Test Voltage: Supply Voltage, maximum load current 16A
• Display Range: 0.00 – 3.50mA
• Pass Value: User defined

Load Power/Current

• Test Voltage: 230V +10%, -15%, maximum load current 16A
• Test Duration: Programmable up to a maximum of 255s depending on load
• Display Range: 0.00kVA – 4.00kVA, 0.00A – 16.00A

Alternative Leakage Current

• Test Voltages: >25Vac <50Vac
• Display Range: 0.00mA to 19.99mA
• Pass Value: User Defined

RCD Test

• Test Voltage: 230V +10%, -15%
• Test Current: 15mA / 30mA rms sinusoidal
• Display Range: 0ms - 2000ms
• Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

• Voltage Range: 207V – 253Vac
• Indicates configuration of voltage potential: Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

• Memory size: 50,000 records & 2000 photos
• Weight: 1.5kg
• Dimensions: 230mm x 150mm x 100mm
• Power Source: Mains or rechargeable battery pack

The Seaward Apollo 600+ with PATGuard Elite Kit comes with:

• Seaward Apollo 600+ PAT Tester with included accessories
• Seaward PATGuard Elite 3 (1 Year Licence → upgradable to Infinite Licence)
• 1000 Pass Labels
• 200 Fail Labels
• 250 Pass Wrap Labels
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
• IEC Adaptor Kit
