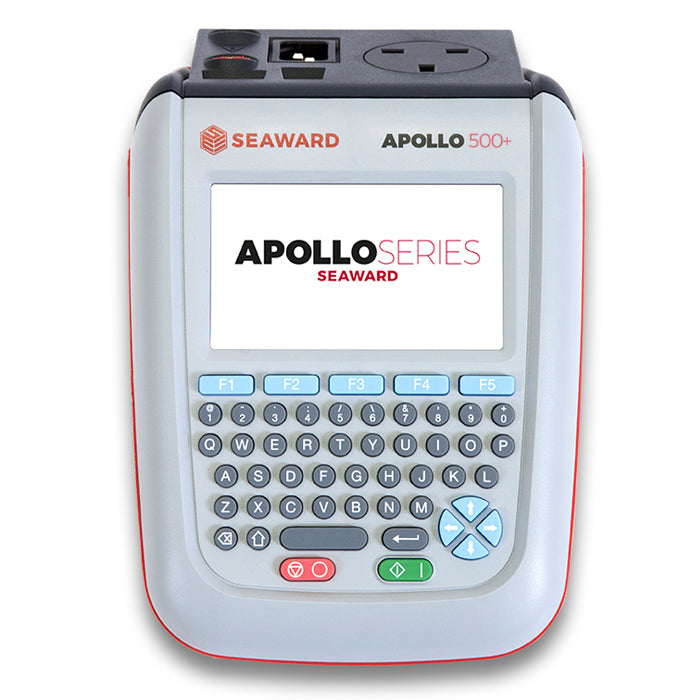

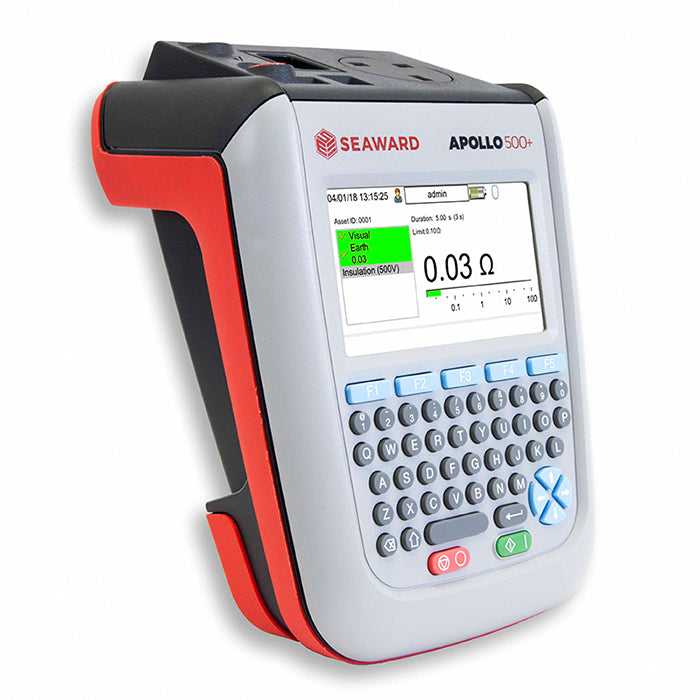

Seaward Apollo 500+ Kit with PATGuard Elite 3 Software

The Seaward Apollo 500+ PAT Tester now has all-new firmware with an improved user interface and a database search function. Furthermore, the tester can now work with a Seaward Test n Tag Elite 2 Printer and Seaward scanner to print and read QR-coded PAT labels. As well as providing more information, QR codes can be scanned by a customer using a smartphone in order to find out full PAT test results and information. A new external battery pack now allows the user to switch the rechargeable battery in the field, thus preventing downtime.

The Apollo 500+ is the latest intuitive downloading PAT Tester from market leaders Seaward Electronics. This model combines ease of use with a wide variety of professional features designed to speed up testing on IT equipment, 230V, 110V Appliances and even 3 phase equipment. A full firmware update means that the tester has an improved user interface and QR code compatibility whilst there is also a practical external battery pack.

The Apollo 500+ is one of the few PAT Testers to fully comply with the latest IEE Code of Practice Regulations in particular in terms of Risk Assessment. The Apollo’s ground breaking built in Risk Assessment tool allows a user to record any potential hazards within the workplace and plan any corrective actions.

The Seaward Apollo 500+’s ergonomic lightweight design makes it ideal for troublesome jobs and its full QWERTY keypad, clear navigation and full colour display make it one of the most user friendly instruments available.

This is a versatile PAT Testing kit complete with a 1-year licence of Seaward PATGuard Elite 3 Software the recommended package for creating professional reports and organising Risk Assessment data. The kit also offers an IEC Adaptor Kit, Labels and 110V Adaptors to cover you on even the most demanding jobs.

Seaward Apollo 500+ PAT Tester Main Features:

• Ergonomically designed PAT Tester – Designed to fit comfortably in users hands
• Plug and Play Technology – Designed to speed up testing with an intuitive navigation
• Advanced fixed appliance testing - Point to point testing on fixed appliances
• High Definition screen – Large colour screen
• Full QWERTY Keypad – Speeds up data input
• Built in Risk Assessment Tool – PAT Tester with Risk Assessment form built in
• IET compliant PAT Tester – Tester carries out all the tests recommended by the IET
• Large internal memory – Apollo 500+ stores up to 10000 PAT results and records
• Two ways to download/upload – Transfer data via USB cable or wirelessly via Bluetooth
• Programmable user tests for non electrical tests and inspections
• Extensive range of test procedures – quickly and effectively access basic and advanced tests

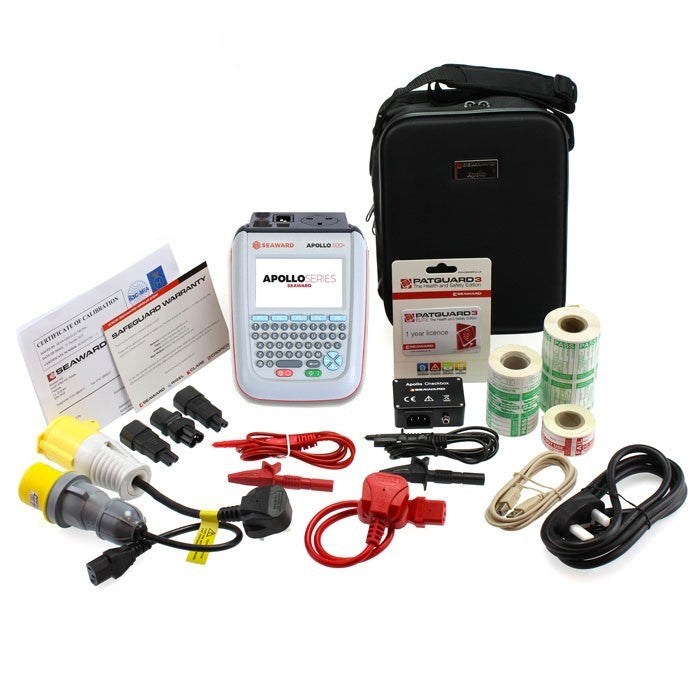

Seaward Apollo 500+ with PATGuard Elite Kit Includes:

• Seaward Apollo 500+ PAT Tester & included accessories
• Seaward PATGuard Elite 3 (1 Year Licence → upgradable to Infinite Licence)
• 1000 Pass Labels
• 200 Fail Labels
• 250 Pass Wrap Labels
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
• IEC Adaptor Kit
• Free Seaward Apollo Custom Carry Case

For more information on the Seaward Apollo 500+ PAT Tester please click here.

We Have A Choice Of Five Seaward Apollo 500+ Kits:

Earth Continuity

• Test Current: +/- 200mA DC
• Display Range: 0.01 – 19.99Ω
• Pass Value: User Defined

Insulation Resistance

• Test Voltage: 500V / 250V DC @ 1mA nominal
• Display Range: 0.01MΩ - 19.99MΩ
• Pass Value: User Defined

IEC Lead Test

• Test voltage: 5V ac nominal
• Test: Live / Neutral Checks for o/c, s/c and crossed

Protective Conductor Current/Load

• Test Voltage: Supply voltage, maximum load current 16A
• Display Ranges: 0.01mA to 19.99mA
• Pass Value: User Defined

Touch Current

• Test Voltage: Supply Voltage, maximum load current 16A
• Display Range: 0.00 – 3.50mA
• Pass Value: User defined

Load Power/Current

• Test Voltage: Supply Voltage, maximum load current 16A
• Test Duration: Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads.
• Display Range: 0.00kVA – 4.00kVA 0.00A – 16.00A

Alternative Leakage Current

• Test Voltages: >25Vac <50Vac
• Display Range: 0.00mA to 19.99mA
• Pass Value: User Defined

RCD Test

• Test Voltage: 230V +10%,-15%
• Test Current: 30mA / 150mA rms sinusoidal
• Display Range: 0ms - 2000ms (30mA), 0-40ms (150mA)
• Test method: Internal isolation to avoid tripping distribution board RCD

Power Socket Test

• Voltage Range: 207V – 253V AC Indicates configuration of voltage potential:- Line potential phase to earth, Line potential phase to neutral, Line potential neutral to earth

General

• Memory size 10,000 records
• Weight 1.5kg
• Dimensions 230mm x 150mm x 100mm
• Power Source Mains or Rechargeable battery pack

The Seaward Apollo 500+ PATGuard Elite Kit comes with:

• Seaward Apollo 500+ PAT Tester & included accessories
• Seaward PATGuard Elite 3 (1 Year Licence → upgradable to Infinite Licence)
• 1000 Pass Labels
• 200 Fail Labels
• 250 Pass Wrap Labels
• 110V Appliance Adaptor
• 110V Extension Lead Adaptor
• IEC Adaptor Kit
• Free Seaward Custom Carry Case
