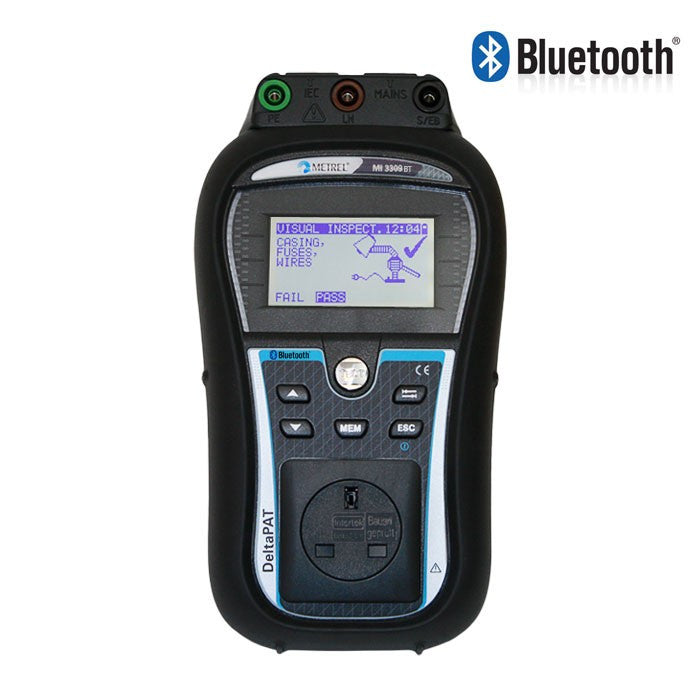

Metrel DeltaPAT BT Kit A
- PAT Tester features wireless data transfer via Bluetooth
- Compatible with Metrel Android PATlink App
- Adaptors, labels and microwave leakage detector for all PAT needs
The Metrel DeltaPAT Tester benefits from both battery powered and mains powered operation, allowing differential & touch leakage testing and has integrated P/RCD technology that prevents the mains RCD from tripping while measurements are being taken. In addition the DeltaPAT has inputs for PAT testing fixed appliances.
Bright red and green lights and a clear display offer quick recognition of Pass/Fail status along with the test value, while a built-in charger and rechargeable batteries mean the MI3309 DeltaPAT is fully equipped for a full day of portable appliance testing.
Complete with a memory that stores up to 1500 test results with parameters and Metrel PATLink Pro software for downloading and importing PAT test data into reports, the Metrel DeltaPAT tester is ideal for testing large numbers of electrical appliances in a range of environments.
Metrel DeltaPAT BT Tester Kit A Includes:
- Metrel MI3309BT DeltaPAT Tester (complete with IEC Test Lead, 3 x Test Leads, Crocodile Clips & Probes, USB & RS232 Download Leads, 6 x Rechargeable Batteries, DeltaPAT Instruction Manual, Calibration Certificate and Carry Case).
- Metrel PATLink Pro PAT Software
- Microwave Leakage Detector
- 50 Microwave Emission Labels
- IEC Clover Leaf Adaptor
- 110V Appliance Adaptor
- 110V Extension Lead Adaptor
- 1000 Pass Labels
- 200 Fail Labels
- 250 PassWrap Cable Labels
For more information on the Metrel MI3309BT DeltaPAT please click here.
| Kit A | Kit B | |
|---|---|---|
| Metrel MI3309BT DeltaPAT | ✔ | ✔ |
| PATLink Pro Software | ✔ | ✔ |
| Barcode Scanner | ✔ | |
| 1000 Appliance ID Barcode Labels | ✔ | |
| Socket Tester | ✔ | |
| Microwave Leakage Detector | ✔ | ✔ |
| 50 Microwave Emission Labels | ✔ | ✔ |
| IEC Clover Leaf Adaptor | ✔ | ✔ |
| 110V Appliance Adaptor | ✔ | ✔ |
| 110V Extension Lead Adaptor | ✔ | ✔ |
| 1000 Pass Labels | ✔ | ✔ |
| 200 Fail Labels | ✔ | ✔ |
| 250 PassWrap Cable Labels | ✔ | ✔ |
Earth Continuity
- Current: 200mA
- Measuring Range: 0.00-1999 ohms
Insulation Resistance
- Voltage: 250V or 500V DC
- Measuring Range: 0.00-199.9 Mohms
Differential Leakage
- Voltage: 230V AC
- Measuring Range: 0.00-19.99mA
Touch Leakage
- Voltage: 230V AC
- Measuring Range: 0.00-7.0mA
Substitute Leakage
- Voltage: 30V AC
- Measuring Range: 0.00-20.0mA
P/RCD Testing
- Currents: 10mA, 15mA, 30mA
- Measuring Range: 0 ms - 300ms(½xI∆N) 0ms - 300ms(I∆N), 0ms - 40ms(5xI∆N)
- Resolution: 0.1ms
Power Measurement
- Voltage: 230V AC
- Measuring Range: 0.00-4.00kVA
Voltage TRMS
- Range: 80-300V
- Overvoltage: CAT II/300V
- Protection: Case IP40, Connectors IP20
- Dimensions: 140 x 80 x 230mm
- Weight: 1.2kg
Metrel DeltaPAT Kit A comes with:
- Metrel MI3309 DeltaPAT Tester (complete with IEC Test Lead, 3 x Test Leads, Crocodile Clips & Probes, USB & RS232 Download Leads, 6 x Rechargeable Batteries, DeltaPAT Instruction Manual, Calibration Certificate and Carry Case).
- Metrel PATLink Pro PAT Software
- Microwave Leakage Detector
- 50 Microwave Emission Labels
- IEC Clover Leaf Adaptor
- 110V Appliance Adaptor
- 110V Extension Lead Adaptor
- 1000 Pass Labels
- 200 Fail Labels
- 250 PassWrap Cable Labels
