Megger PAT420 Industrial PAT Testing Kit

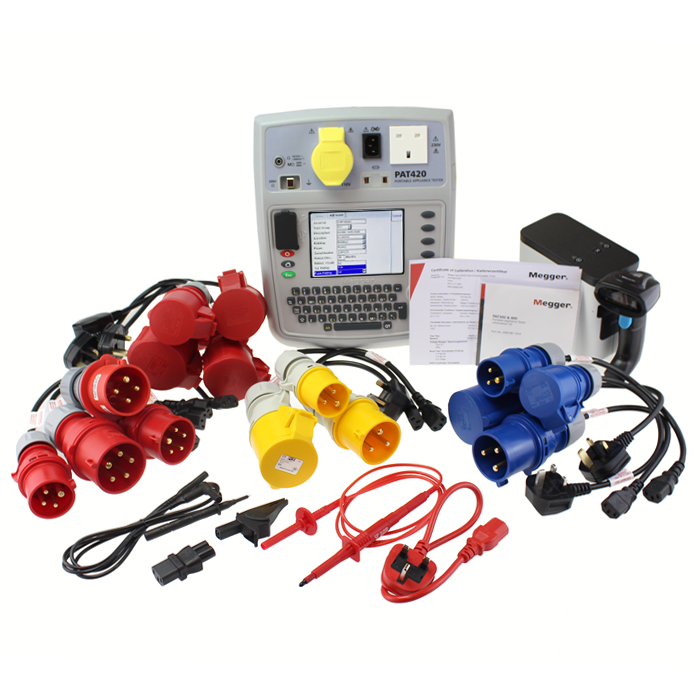

The Megger PAT420 Industrial PAT Testing Kit is useful kit that contains the powerful Megger PAT420 PAT Tester, a comprehensive set of PAT adaptors, a PAT label printer and a barcode scanner.
Various functions make the Megger PAT420 suitable for large-scale PAT testing in domestic, commercial and industrial environments. It can perform earth bond testing, insulation resistance testing, load & run testing, differential/substitute/touch leakage measurement, PRCD trip time measurement, and polarity checking. It has a 110V/16A test socket built as standard.
The Megger PAT420’s large internal memory (10,000 readings) automatically records results and they can be saved in a logical database format. The user can add notes with the QWERTY keyboard and it has a strong construction capable of withstanding the challenges of day-to-day use. Automatic test sequences are available for Class I and Class II appliances as well as extension leads and there are individual buttons for triggering single tests.
Several adaptors are included in the Megger PAT420 Industrial PAT Kit. Both appliance and extension leads adaptors are included for 110V/32A equipment, 230V/16A equipment and 230V/32A equipment. Furthermore, there are four- and five-pin adaptors for 415V/16A and 415V/32A three-phase equipment as well as an adaptor for 110V/16A extension leads.
The Megger PAT420 Industrial PAT Kit comes with the Megger PAT400 Label Printer which works together with the PAT tester to print customised, barcoded PAT labels for appliances and leads. These can then be read at a later date by the supplied Megger Barcode Scanner which - when connected to the tester - recalls appliance information immediately to screen, aiding the creation of consistent results database.
Megger PAT420 Industrial PAT Testing Kit Includes:
- Megger PAT420 PAT Tester
- Megger PAT400 PAT Label Printer
- Megger Barcode Scanner
- 110V/16A extension lead adaptor
- 110V/32A appliance adaptor
- 110V/32A extension lead adaptor
- 230V/16A appliance adaptor
- 230V/16A extension lead adaptor
- 230V/32A appliance adaptor
- 230V/32A extension lead adaptor
- 415V/16A 4-pin appliance adaptor
- 415V/32A 4-pin appliance adaptor
- 415V/16A 4-pin extension lead adaptor
- 415V/32A 4-pin extension lead adaptor
- 415V/16A 5-pin appliance adaptor
- 415V/32A 5-pin appliance adaptor
- 415V/16A 5-pin extension lead adaptor
- 415V/32A 5-pin extension lead adaptor
- Earth Bond Test Lead
- Calibration Certificate
- PAT420 Carry Case
| Kit 1 | Kit 2 | Kit 3 | Industrial Kit | |
|---|---|---|---|---|
| Megger PAT420 Tester | ✔ | ✔ | ✔ | ✔ |
| SimplyPATs V7 Software | ✔ | ✔ | ||
| PAT400 Barcode Label Printer | ✔ | ✔ | ✔ | |
| 2x Printer Cartridges | ✔ | ✔ | ||
| PAT400 Barcode Scanner | ✔ | ✔ | ✔ | |
| Microwave Leakage Detector | ✔ | ✔ | ||
| 50 Microwave Emission Labels | ✔ | ✔ | ||
| Pass Labels | 500 | 1000 | 1000 | |
| Fail Labels | 200 | 400 | 400 | |
| PassWrap Labels | 250 | 250 | ||
| 110V Extension Lead Adaptor | ✔ | ✔ | ✔ | |
| IEC Adaptor Kit less IEC Clover | ✔ | ✔ | ✔ | |
| 110V Adaptor Set | ✔ | |||
| 230V Adaptor Set | ✔ | |||
| 415V 4-Pin Adaptor Set | ✔ | |||
| 415V 5-Pin Adaptor Set | ✔ | |||
| Earth Bond Test Lead | ✔ | ✔ | ✔ | ✔ |
| 230V Extension Lead Adaptor | ✔ | ✔ | ✔ | ✔ |
| Calibration Certificate | ✔ | ✔ | ✔ | ✔ |
| PAT420 Carry Case | ✔ | ✔ | ✔ | ✔ |
Earth Bond test (10A and 25A)
- Open circuit voltage: 9V AC (Supply 230V)
- Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
- Resistance resolution: 10 mΩ (0 to 1.99 Ω)
- Display range: 0 to 1.99 Ω
Continuity test (200mA)
- Voltage: 4V DC
- Resistance accuracy: ±5% ±3 digits (0 to 0.49 Ω), ±5% ±5 digits 0.5 to .99 Ω)
- Resistance resolution: 10 mΩ (1 to 19.99 Ω)
- Display range: 0 to 19.99 Ω
Insulation test (250/500V)
- Resistance accuracy: ±2% ±5 digits (0 to 19.99 MΩ), ±5% ±10 digits (20 to 99.99 MΩ)
- Resistance resolution: 0.01 MΩ
- Display range: 0 to 99.99 MΩ
Substitute leakage test
- Voltage: 40V AC nominal mains frequency
- Current accuracy: ±5% ±5 digits
- Current resolution: 0.01mA
- Display range: 0 to 19.99mA
Differential leakage test
- Voltage: Nominal mains supply
- Current accuracy: ±5% ±5 digits
- Current resolution: 0.01mA
- Display range: 0 to 19.99mA
Touch current test
- Voltage: Nominal mains supply
- Current accuracy: ±5% ±5 digits
- Current resolution: 0.01mA
- Display range: 0 to 10mA
Operational test
- Voltage: Nominal mains supply
- VA accuracy: ±5% ±10 digits (0 - 99 VA), ±5% ±50 digits (100 VA - 999 VA), ±5% ±100 digits (1000 VA - 3700 VA)
- Resolution: 1 VA (0 to 3700 VA)
- Display range: 0 to 3999 VA
Extension lead test
- Tests performed: Bond, insulation and polarity
- Polarity test voltage: 12V
- Polarity checks: Lead OK, Live neutral S/C, Live neutral reversed, Live/neutral O/C
Portable RCD test
- Voltage: Nominal mains supply
- Current accuracy: -8% to -2% (1/2 x I), +2% to +8% (1 x I, 5 x I)
- Trip time accuracy: ±1% ±5 digits
- Trip time resolution: 0.1ms
- Display range: 0 to 1999 ms (1/2 x I), 0 to 300 ms (1 x I), 0 to 40 ms (5 x I)
Fuse test
- Voltage: 3.3V
- Warning: Audible bleep if fuse is OK
- Supply range: 230V at 50Hz, 110V at 50Hz
- Compliance: IEC 61010-1, CAT II 300V, IEC 61326-1, 61326-2-2
- Dimensions: 180 x 255 x 320mm
- Weight: 4.4kg
The Megger PAT420 Industrial PAT Testing Kit comes with:
- Megger PAT420 PAT Tester
- Megger PAT400 PAT Label Printer
- Megger Barcode Scanner
- 110V/16A extension lead adaptor
- 110V/32A appliance adaptor
- 110V/32A extension lead adaptor
- 230V/16A appliance adaptor
- 230V/16A extension lead adaptor
- 230V/32A appliance adaptor
- 230V/32A extension lead adaptor
- 415V/16A 4-pin appliance adaptor
- 415V/32A 4-pin appliance adaptor
- 415V/16A 4-pin extension lead adaptor
- 415V/32A 4-pin extension lead adaptor
- 415V/16A 5-pin appliance adaptor
- 415V/32A 5-pin appliance adaptor
- 415V/16A 5-pin extension lead adaptor
- 415V/32A 5-pin extension lead adaptor
- Earth Bond Test Lead
- Calibration Certificate
- PAT420 Carry Case
