Megger PAT120 Kit B
- Features 110V adaptors for appliances and extension leads
- Multiple types of pass label including Tuff Tag and PassWrap
- Megger PAT120 allows 250V and 500V insulation testing as well as substitute leakage
The principal component of the Megger PAT120 Kit B is the PAT120 tester itself. It can be used to test Class I and Class II appliances in addition to extension leads and power cables using pre-set PASS/FAIL limits to provide a useful safety indication. Additional functions include 250V and 500V insulation testing and substitute leakage measurement. A 110V appliance adaptor and 110V extension lead adaptor are included to allow testing on power tools and other construction equipment. An IEC cloverleaf adaptor is included for extension leads.
A Megger MST210 socket tester is included so the user can check the power to supply to appliances. A range of labels, certificate pad and register book allow the user to accurately record results and mark appliances and leads.

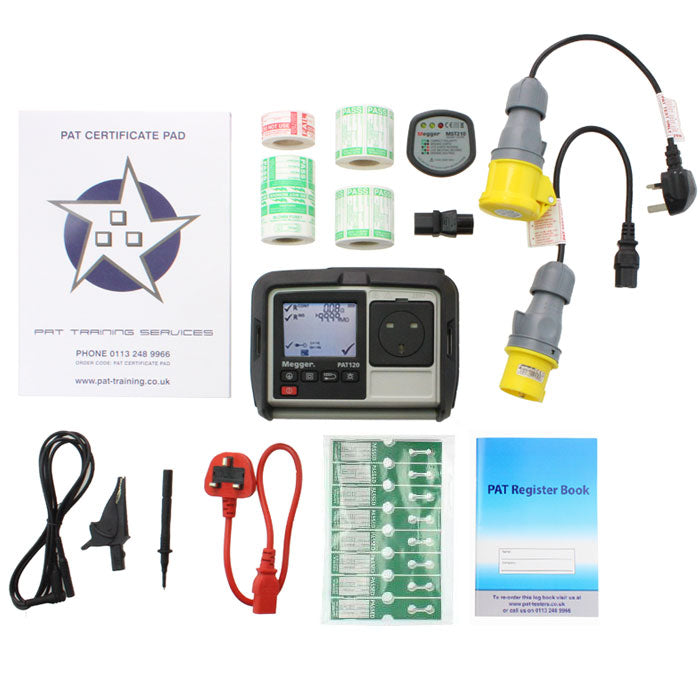

Megger PAT120 Kit B Includes:
- Megger PAT120 PAT Tester
- 2 x 500 Pass Labels
- 200 Fail Labels
- 250 PassWrap Labels
- 250 Tuff Tag Pass Labels
- PAT Certificate Pad
- PAT Register Book
- IEC Cloverleaf Adaptor
- 110V Appliance Adaptor
- 110V Extension Lead Adaptor
- Megger MST210 Socket Tester
For more information on the Megger PAT120 PAT Tester please click here.
| Kit A | Kit B | Kit C | |
|---|---|---|---|
| Megger PAT120 PAT Tester | ✔ | ✔ | ✔ |
| SimplyPATs Version 7 Manual Software | ✔ | ||
| 2 x 500 Pass Labels | ✔ | ✔ | ✔ |
| 200 Fail Labels | ✔ | ✔ | ✔ |
| 250 PassWrap Labels | ✔ | ✔ | ✔ |
| PAT Register Book | ✔ | ✔ | ✔ |
| PAT Certificate Pad | ✔ | ✔ | ✔ |
| IEC Cloverleaf Adaptor | ✔ | ✔ | |
| IEC Adaptor Kit | ✔ | ||
| 110V Appliance Adaptor | ✔ | ✔ | |
| 110V Extension Lead Adaptor | ✔ | ✔ | |
| Microwave Leakage Detector | ✔ | ✔ | |
| 50 Microwave Emission Labels | ✔ | ✔ | |
| Megger MST210 Socket Tester | ✔ | ✔ | ✔ |
Environmental Conditions
- Operating ambient: 20°C
- Humidity: Nominal humidity
Continuity Test
- Test voltage: Compliance Voltage: +4V dc, –0 % /+10 % (open circuit)
- Test current: Bi-directional +200mA, -0% + 50mA (into 2Ω load)
- Continuity accuracy: Resistance: ± 5% ± 3 digits (0 to 19.99 Ω)
- Resistance resolution: 10 mΩ
- Display range: 0.01 to 19.99Ω
- Continuity test nulling: up to 9.99 Ω
- Test time: User selectable from 2 sec to 20 sec or selected during test to 180sec
Insulation Test
- Insulation test: 250V dc –0 % /+25 % open circuit, 500V dc –0 % /+25 % open circuit, ≥ 500V 0% dc across 0.5 MΩ load
- Short circuit/charge current: < 2mA dc
- Insulation accuracy: ±3% ±10 digits (0 to 19.99 MΩ)
- Resolution: 0.01 MΩ
- Display range: 0.10 MΩ to 99.99 MΩ
- Test duration: User selectable from 2 sec to 20 sec or selected during test to 180sec
Substitute Leakage Test
- Leakage current: Accuracy ± 5% ± 3 digits
- Test frequency: Nominal mains frequency 50Hz
- Test voltage: < 50V ac
- Resolution: 0.01mA
- Display range: 0.10 to 19.99mA
- Test duration: User selectable from 2 sec to 5 seconds
- Reading corrected to 230V ac.
Safety
- Instrument designed to IEC 61010-1: 2012
- Test leads designed to IEC 61010-031: 2005
- 300 volts to Earth Category II
- Mains fuse protection to 250 volts rms ac
EMC
- Design to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005.
Environmental
- Operating temperature range: 0°C to +40°C
- Storage temperature range: -20°C to +60°C
- Humidity: 90%RH @ +10°C +30°C, 75%RH @ +30°C to +40°C
- Maximum altitude: 2,000m to full safety spec.
- IP rating: IP40 (with front cover closed)
General
- Battery: Supply voltage, 12 Vdc (Alkaline AA LR6), 9.6 Vdc (NiMH AA LR6)
- Weight (PAT120 Only): 1150g
- Weight (Shipping): 2370g
- Dimensions: 203 x 148 x 78mm
- Megger Part Number: 1003-062
The Megger PAT120 Kit B comes with:
- Megger PAT120 PAT Tester
- 2 x 500 Pass Labels
- 200 Fail Labels
- 250 PassWrap Labels
- 250 Tuff Tag Pass Labels
- PAT Certificate Pad
- PAT Register Book
- IEC Cloverleaf Adaptor
- 110V Appliance Adaptor
- 110V Extension Lead Adaptor
- Megger MST210 Socket Tester
