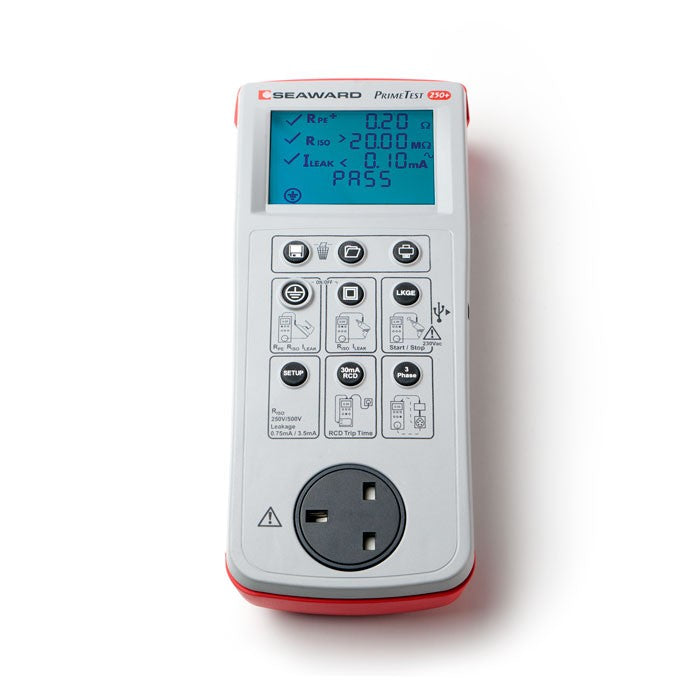

Seaward Primetest 250+ PAT Tester Elements Bundle

The Primetest 250+ is a downloadable battery powered PAT Tester offering a wide range of tests that fully comply with the latest edition of the IEE Code of Practice.

This tester has an ergonomic build and is simple to use with dedicated buttons clearly labelled for each procedure. The Primetest 250 Plus has additional benefits of being able to store up to 999 test results and print them to the Seaward Pro Printer (not Included in this Kit).

Despite being lightweight the Primetest 250+ can perform a multitude of tests including low current continuity tests, insulation tests at 250V and 500V. The unit will also perform protective conductor tests, IEC lead tests, touch current, 3 phase leakage current (please see the Seaward TPA 3 Phase Adaptors), RCD (30mA/150mA) and power socket tests.

Key Features

• Portable battery powered device – Designed for ease of use with clearly mapped functions
• Ergonomic Design – Fits within one hand for fast use
• Comprehensive range of test procedures
• Internal Memory – Capable of storing and downloading 999 test results
• Seaward Elements Software Included
• Single button save key and download
• All results time stamped for full traceability
• Tests 3 Phase Appliances
• Plug and Play printing - Compatible with Seaward Pro Printer no setup required
• Patent-pending low current earth continuity tests guarantees accurate measurements

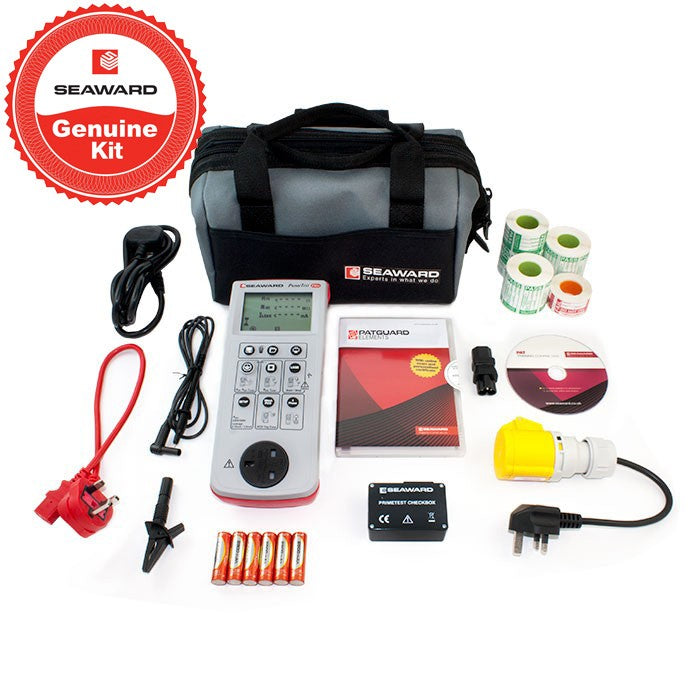

Seaward Primetest 250 Plus PAT Tester Elements Bundle Includes:

• Seaward Primetest 250+ PAT Tester accessories
• Seaward PATGuard Elements Software
• 1000 Pass Labels
• 200 Fail Labels
• 110V Appliance Adaptor
• Cloverleaf Adaptor
• Primetest Checkbox
• Seaward PAT Training Online Course Voucher
• Seaward PATBag Carry Case

For more information on the Seaward Primetest 250 Plus please click here.

Earth Continuity

• Output Current - 200mA minimum into 2Ω
• Test Voltage (o/c) - 9V DC nominal
• Test Duration (Class I Test) - 2s nominal
• Display Range - 0.01Ω to 19.99Ω
• Pass Value (Class I Test) - 0.2Ω

Insulation Resistance

• Test Voltage - 250/500V DC @1mA nominal, <2mA (s/c)
• Test Duration (Class I or II) - 2s
• Display Range - 0.01MΩ to 19.99MΩ
• Pass Value - Class I: 1.0MΩ, Class II: 2.0MΩ

Equivalent Leakage

• Test Voltage - 40V Nominal AC 50Hz Open Circuit
• Test Duration - 2s
• Display Range - 0.1mA to 19.99mA
• Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)/0.25mA CL II

IEC Lead Test

• Test Voltage - 5V DC Nominal
• Test Duration - Time for Test (2s max)
• Test - Live/Neutral Checks for o/c, s/c and crossed

Protective Conductor Current

• Test Voltage - Supply voltage, max current 13A
• Test Duration - 120s Maximum
• Display Range - 0.15mA to 9.99mA
• Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)

Touch Current

• Test Voltage - Supply voltage, max current 13A
• Test Duration - 120s maximum
• Display Range - 0.10mA to 3.50mA
• Pass Value - 0.25mA

3 Phase Differential Leakage Current *Requires 3 phase adaptor accessory

• Test Voltage - 3 phase supply voltage
• Test Duration - Continuous measurements
• Display Range - 0.10mA to 9.99mA
• Pass Value - 0.75mA/3.5mA (user selectable with 0.75mA as default)

RCD Trip Time

• Test Voltage - Mains supply voltage
• Test Current - 30mA/150mA rms sinusoidal
• Test Current Phase - 0/180° auto switched on alternate tests
• Measuring Range - 0ms to 500ms
• Pass Value - 200ms

Power Socket Check

• Input Voltage Range - 225-254V AC max current 13A UK
•  Indicates configuration of voltage potentiall - Line to earth, line to neutral, neutral to earth

General

• Memory Size - 999 Test Records
• Power Source - 6 x AA Batteries

The Seaward Primetest 250 Plus PAT Tester Elements bundle comes with:

• Seaward Primetest 250+ PAT Tester accessories
• Seaward PATGuard Elements Software (for manual input only)
• 1000 Pass Labels
• 200 Fail Labels
• 110V Appliance Adaptor
• Cloverleaf Adaptor
• Primetest Checkbox
• Seaward PAT Training Online Course Voucher
• Seaward PATBag Carry Case
